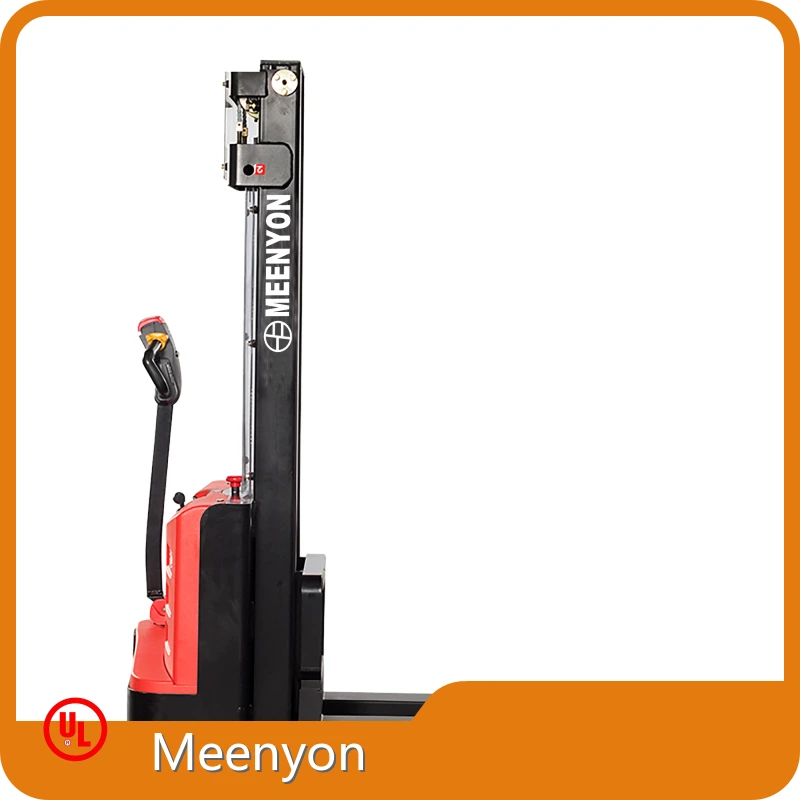

Product details of the Stand-on Stacker
Product Introduction
The raw material of Stand-on Stacker is environmentally. The quality control is carefully carried out throughout the entire product production cycle. As we adhere to continuous innovation, the product will be given more advantages and will be more widely used in the future.
Product specifications
| Item | Name | Unit (Code) | ||
| Feature | ||||
| 1.1 | Brand | MEENYON | MEENYON | |
| 1.2 | Model | ES12-12ES | ES10-10ES | |
| 1.3 | Power | Electric | Electric | |
| 1.4 | Operation | Walking | Walking | |
| 1.5 | Rated load | Q (kg) | 1200 | 1200 |
| 1.6 | Load center distance | c (mm) | 600 | 600 |
| Weight | ||||
| 2.1 | Dead weight (incl. battery) | kg | 661 | 540 |
| Size | ||||
| 4.2 | Lowest height after the gantry is lowered | h1 (mm) | 2056 | 2026 |
| 4.4 | Standard max lifting height | h3 (mm) | 3015 | 3015 |
| 4.15 | Fork drop height | h13(mm) | 88 | 88 |
| 4.19 | Overall length | l1 (mm) | 1740 | 1740 |
| 4.21 | Overall width | b1/ b2 (mm) | 800 | 800 |
| 4.25 | Fork outside distance | b5 (mm) | 570 | 570 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2225 | 2225 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2150 | 2150 |
| 4.35 | Turning radius | Wa (mm) | 1408 | 1408 |
| Performance parameter | ||||
| 5.1 | Walk speed, full /no load | km/ h | 4 / 4.5 | 4 / 4.5 |
| 5.2 | Lifting speed, full /no load | m/ s | 0.12/0.22 | 0.12/0.22 |
| Motor, Power unit | ||||
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 2*12V/105Ah | 2*12V/105Ah |
Company Feature
• Our company is close to the road with convenient transportation. It facilitates the transportation of products and guarantees the timely supply of products.
• Our company is actively carrying out the export business. And our products are mainly exported to Europe, America, Africa, South Asia and Southeast Asia.
• Our company has professional production team and modern management team. They work together to create a new future for our company.
• In order to protect the rights and interests of consumers, we have gathered a number of professional customer service staff to answer all kinds of questions. And providing the best services is our promise to consumers.
If you have any questions, you may leave your contact information. Meenyon will get back to you as soon as possible.
