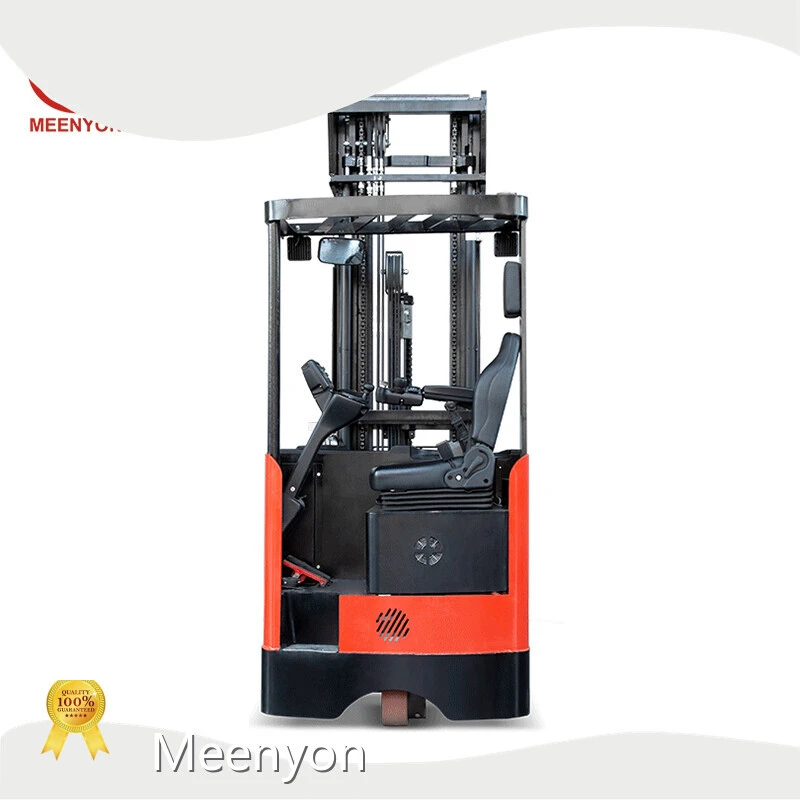

Meenyon Warehouse Reach Truck Brand Custom

Inquiry

Product details of the warehouse reach truck


Product Description

Meenyon warehouse reach truck is manufactured in tune with set production guidelines by employing premium-quality raw material and pioneering technology. Our professional technicians monitor the quality of products throughout the production process, which greatly ensures the quality of products. warehouse reach truck is often praised by it's perfect service.

Broaden your horizons & Driving comfort

Utilize the high energy density advantage of lithium batteries to reduce vehicle height and increase driving visibility

Optimize gantry and Plumbing, greatly improve stacking vision

Based on ergonomics, an integrated design has been made for the cockpit, greatly improving operational comfort

Suspended seat design reduces vibration and makes driving more comfortable

21 (3)
22 (3)

Flexible and convenient

◆ 1090mm body width, 2.8m channel width, and flexible operation in narrow channels, also helping to optimize storage space


◆  Integrated operating system, making operations more efficient and simple


◆  Flexible operation within a channel width of 2800mm

23 (3)

Standard AC drive motor

AC lifting motor, electronic steering, and the motor comes with damping, providing more direct operational feedback

24 (3)

Ø Standard color instrument

Visible battery level, visible tire position, visible fault codes, and visible speed

Accurate stacking

◆  8m stacking height to meet the requirements of medium to high level stacking operations

◆  Standard electromagnetic proportional control, more precise, lighter, and easy to handle various working conditions

◆  Optional side shift accessories for more precise high position alignment

25 (4)
26

Safe and efficient

◆  Lithium integrated design, efficient charging and discharging, reducing charging time


◆  Standard 280Ah lithium battery, 150A charger, lifting speed of 550mm/s, driving speed of 9.3km/h, high-power lifting unit, high-speed gantry lifting, more efficient high-level stacking


◆  Standard OPS for more secure operation


◆  Reduce the center of gravity of the entire vehicle, increase the high-altitude load, and increase the stability of high-altitude stacking.

27 (2)

COMPANY STRENGTH

Item

Name

Unit (Code)



Feature

1.1

Brand



MEENYON

1.2

Model



CQD16L

1.3

Power



Electric

1.4

Operation



Ride and Drive

1.5

Rated load

Q (kg)

1600

1.6

Load center distance

c (mm)

600

Weight

2.1

Dead weight (incl. battery)

kg

2840

Size

4.2

Lowest height of the gantry after lowering

h1 (mm)

2780

4.4

Maximum lifting height of standard gantry

h3(mm)

6500

4.5

The height of the gantry at the highest lifting point

h4(mm)

7535

4.7

Roof protection (cockpit) height

h6(mm)

2153

4.19

Overall length

l1 (mm)

2434

4.21

Overall width

b1/ b2 (mm)

1080/1090

4.22

Fork size

s/ e/ l (mm)

40/100/1070

4.24

Outer width of the shelf

b3 (mm)

872

4.25

Fork outside distance

b5 (mm)

200-655

4.26

Distance between wheel arms

b4 (mm)

750

4.34.1

Pallet 1000 × 1200 cross path width

Ast (mm)

2789

4.34.2

Pallet 800 × 1200 cross path width

Ast (mm)

2840

4.35

Turning radius

Wa (mm)

1720

4.37

Vehicle length (excluding forks)

l7(mm)

1870

Performance parameter

5.1

Walk speed, full /no load

km/ h

9/9.3

5.2

Lifting speed, full/no load

m/s

0.35/0.55

5.3

Descending speed, full /no load

m/ s

0.55/0.5

5.8

Maximum climbing slope, full/no load

%

8/10

Motor, Power unit

6.4

Battery voltage/nominal capacity

V/ Ah

48/280
