Zhongli's Original Chassis Design

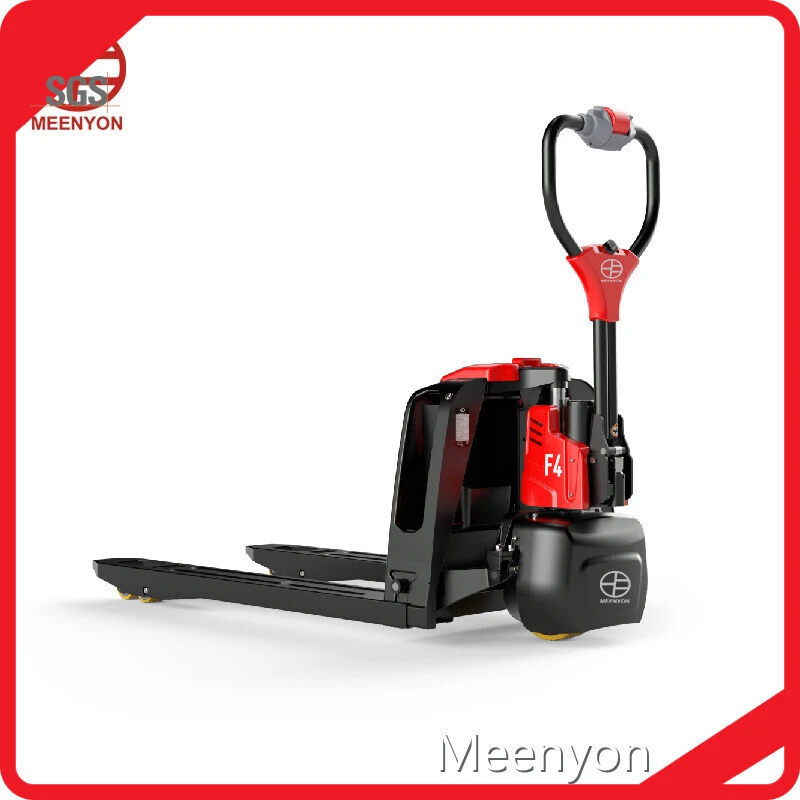

F4 adopts the new and original chassis design concept of Zhongli, which separates the front and rear frames, integrates the rear frames, and produces personalized front frames to meet the diverse transportation needs of users.
◆ Our in-house designers and engineers have produced countless great designs for customers from different industries
◆ Rear frame
1. Integrated powertrain
Through design optimization, the power system is highly integrated, the structure is arranged reasonably, the heat dissipation effect of the controller is improved, the quality is improved, and maintenance costs are reduced.
Joystick
Controller
Hydraulic system
New load-bearing bridge
Drive unit
2. Border inspection and production
Reliable quality, guaranteed quality
3. Highly integrated joystick for a new human-computer interaction experience
Ergonomically designed dual twist handle for easy operation with both left and right hands
4. Using parts and kits that have been tested by 700000 units in the market
Stable quality, trustworthy quality
Unlimited range, meeting all range requirements
◆ Multiple charging methods are optional, with unlimited F4 range
◆ Dual charging and multi charging
Unlimited use under busy working conditions, for multiple vehicle power exchange cycles
◆ Battery can be changed anytime, F4 has unlimited battery life
◆ Swivel the plug and unplug device 180 degrees to quickly switch between using batteries
◆ Dual battery card slots for easy insertion and removal of batterie
Intensive transportation and separate storage
COMPANY STRENGTH
Item | Name | Unit (code) | |
Feature | |||
1.1 | Brand | MEENYON | |
1.2 | Model | F4 | |
1.3 | Power | Electric | |
1.4 | Operation | Walking | |
1.5 | Rated load | Q (kg) | 1500 |
1.6 | Load center distance | c (mm) | 600 |
Weight | |||
2.1 | Dead weight (incl. battery) | kg | 120 |
Tires, chassis | |||
3.2 | Front wheel size (diameter × width) | 210x70 big drive wheel | |
Size | |||
4.4. | Standard max lifting height | h3 (mm) | 105 |
4.15 | Fork drop height | h13(mm) | 82 |
4.19 | Overall length | l1 (mm) | 1550 |
4.21 | Overall width | b1/ b2 (mm) | 695/590 |
4.25 | Fork outside distance | b5 (mm) | 685/560 |
4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2160 |
4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2025 |
4.35 | Turning radius | Wa (mm) | 1360 |
Performance parameter | |||
5.1 | Walk speed, full/no load | km/ h | 4/4.5 |
5.8 | Max climb, full/no load | % | 5 / 16 |
Motor, Power unit | |||
6.4 | Battery voltage/nominal capacity | V/ Ah | 24/20 |
Company Advantages
· The progress production of Meenyon electric pallet truck suppliers leads the industry.
· The product has stable performance and long storage time.
· With limitless potential, this product supports a favorable outlook.
Company Features
· Meenyon leads the development of the electric pallet truck suppliers industry and has a good influence.
· We have served more customers from all over the world in recent years. At this moment, our sales network has already covered the whole USA, Germany, Japan, South Africa, Russia, and other countries and regions.
· The mission of Meenyon is to build itself into a brand that can be trusted and to give customers the most compelling purchasing experience possible.
Application of the Product
electric pallet truck suppliers has a wide range of applications.
Meenyon insists on providing customers with one-stop and complete solution from the customer's perspective.
