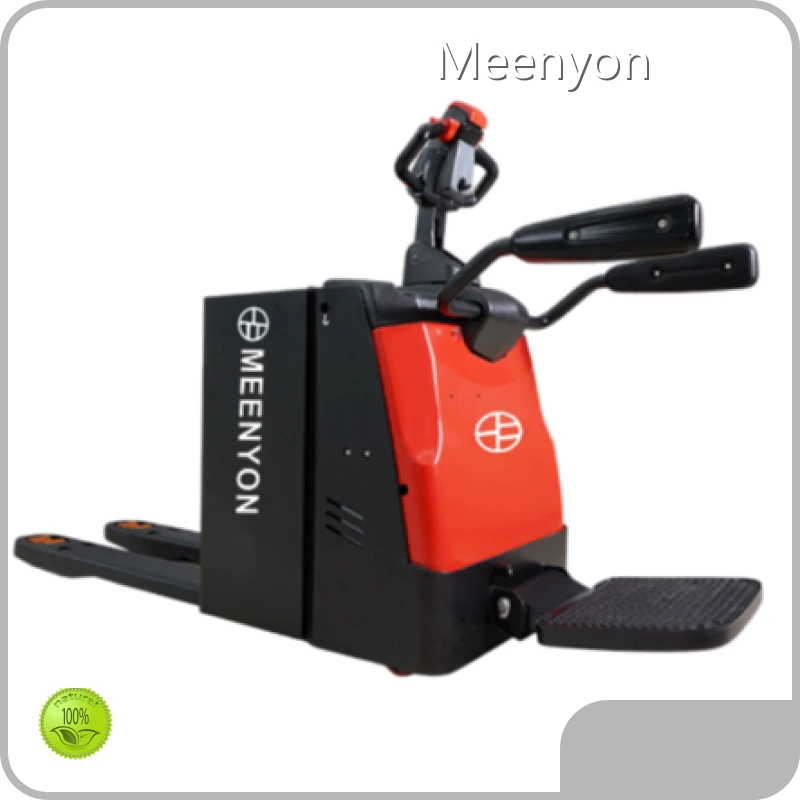

Product details of the cheap electric pallet jack
Product Information
Meenyon cheap electric pallet jack is manufactured by our adroit professionals using premium grade raw material and modern technology. The product is of reliable quality and can be used for a long time. Excellent service attitude and hard work is the solemn promise of Meenyon.
Product specifications
| Item | Name | Unit (code) | ||||
| Feature | ||||||
| 1.1 | Brand | MEENYON | MEENYON | MEENYON | MEENYON | |
| 1.2 | Model | RPL201H | RPL251 | RPL201 | RPL301 | |
| 1.3 | Power | Electric | Electric | Electric | Electric | |
| 1.4 | Operation | Standing | Standing | Standing | Standing | |
| 1.5 | Rated load | Q (kg) | 2000 | 2500 | 2000 | 3000 |
| 1.6 | Load center distance | c (mm) | 600 | 600 | 600 | 600 |
| Weight | ||||||
| 2.1 | Dead weight (incl. battery) | kg | 670 | 790 | 670 | 790 |
| Tires, chassis | ||||||
| 3.2 | Front wheel size (diameter × width) | Ф230x75 | Ф230x75 | Ф230x75 | Ф230x75 | |
| Size | ||||||
| 4.4. | Standard max lifting height | h3 (mm) | 120 | 120 | 120 | 120 |
| 4.15 | Fork drop height | h13(mm) | 85 | 85 | 85 | 85 |
| 4.19 | Overall length | l1 (mm) | 1954（2024） | 1954 | 1954（2024） | 1954 |
| 4.21 | Overall width | b1/ b2 (mm) | 734 | 734 | 734 | 734 |
| 4.25 | Fork outside distance | b5 (mm) | 540/685 | 560 / 685 | 540/685 | 560 / 685 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2606 | 2590 | 2606 | 2590 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2463 | 2447 | 2463 | 2447 |
| 4.35 | Turning radius | Wa (mm) | 1806/1826 | 1790 | 1806/1826 | 1790 |
| Performance parameter | ||||||
| 5.1 | Walk speed, full/no load | km/ h | 9 / 12 | 5.5 / 6 | 7.5 / 8 | 5.5 / 6 |
| 5.8 | Max climb, full/no load | % | 8 / 16 | 6 / 16 | 8 / 16 | 6 / 16 |
| 6.4 | Battery voltage/nominal capacity | V/ Ah | Li 24V/150Ah | Li 24V / 150Ah | Li 24V/150Ah | Li 24V / 150Ah |
About UsaAbout The RPL Series
The RPL series is the latest version of the ride-on pallet truck from MEENYON.
They are fully designed around the concept of integrated Li-Ion battery technology and offers quick, opportunity charging and electric power steering are standard.
The RPL 201 can be equipped with a high-speed option for even higher productivity.
The new released RPL 251 and 301 are able to realize heavy-duty applications and satisfy different working conditions.
