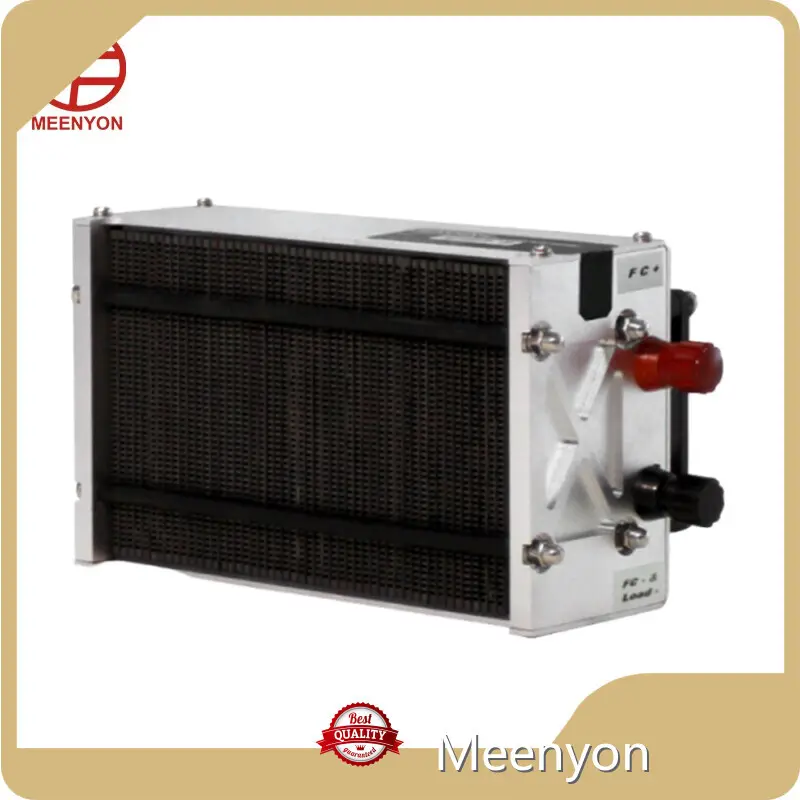

200W Fuel Cell and Hydrogen
◆ Safety Requirements
Do not connect or disconnect power cables when the fuel cell stack is turned on. Warranty is void if the fuel cell stack is disassembled or otherwise altered. Hydrogen is a colorless, odorless, and flammable substance. Always operate and store the fuel cell stacks and hydrogen storage canisters in an area with ample ventilation. Fuel cell systems should always be equipped with a highly accurate hydrogen sensor to detect any leaking hydrogen within the system or from the hydrogen storage canister. Please refer to the H-200 User Manual to see a complete list of the safety requirements for the product.
Fuel Cell Stack 200W Quick Product Facts
This fuel cell stack is composed of 40 fuel cells.
Hydrogen must be fed into the fuel cell stack at a pressure of 0.45-0.55 Bar.
The fuel cell stack operates best in a temperature ranging from 41 to 86° F / 5-30° C.
This fuel cell stack uses self-humidification.
The stack (including fan and casing) weighs 4.91lbs / 2,230g.
The weight of the controller is 0.88lb / 400g.
At 24 volts the efficiency of the system is 40%.
Proper operation of the stack requires an external power supply of 13 volts at 5 amperes.
|
VL-05
|
VL-10
|
VL-30
|
VL-40
|
VL-65
|
VL-100
|
VL-120
|
|
|
|
|
System rated power output (kW) *
|
5
|
10
|
30
|
40
|
65
|
100
|
120
|
*does not include cooling fan power and boost DC efficiency
|
|
Stack rated power output (kW)
|
6
|
12
|
36
|
53
|
79
|
120
|
150
|
|
|
Number of cells
|
65
|
90
|
150
|
220
|
330
|
500
|
500
|
|
|
Operating ambient temperature (℃)
|
-10 to +40
|
-10 to +40
|
-30 to +45
|
-30 to +45
|
-30 to +45
|
-30 to +45
|
-30 to +45
|
|
|
Storage ambient temperature (℃)
|
-40 to +60
|
-40 to +60
|
-40 to +60
|
-40 to +60
|
-40 to +60
|
-40 to +60
|
-40 to +60
|
|
|
Operating ambient humidity (%)
|
0 to 95
|
0 to 95
|
0 to 95
|
0 to 95
|
0 to 95
|
0 to 95
|
0 to 95
|
|
|
Operating pressure (kPa)
|
up to 50
|
up to 50
|
80 to 100
|
80 to 100
|
80 to 100
|
80 to 100
|
120 to 150
|
|
|
IP rating
|
IP54
|
IP54
|
IP67
|
IP67
|
IP67
|
IP67
|
IP67
|
|
|
Vibration noise (dB)
|
up to 80
|
up to 80
|
up to 78
|
up to 78
|
up to 78
|
up to 78
|
up to 90
|
|
|
Voltage current output
|
125A@48V
|
222A@54V
|
400A@90V
|
400A@132V
|
400@198V
|
400@300V
|
500A@300V
|
|
|
System dimensions (mm) **
|
630 x 560 x 610
|
630 x 560 x 610
|
742 x 686 x 637
|
890 x 600 x 520
|
970 x 600 x 516
|
1200 x 790 x 520
|
1200 x 680 x 630
|
** radiator, touch screen, booster DC or air compressor not included
|
|
System weight (kg) ***
|
170
|
180
|
135
|
145
|
170
|
238
|
290
|
*** booster DC not included
|
|
DC output voltage (V)
|
48
|
48/80
|
|
|
|
|
|
|
|
Boost DC output voltage (V)
|
|
|
300 to 450
|
500 to 700
|
500 to 700
|
500 to 700
|
500 to 700
|
|
|
System mass power density (W/kg) ****
|
|
|
220
|
275
|
382
|
420
|
505
|
*** booster DC not included
|
|
Fuel cell stack volume ratio power (kW/l)
|
|
|
|
|
|
|
3.5
|
|
|
Stack operating temperature (℃)
|
60 to 70
|
60 to 70
|
70 to 85
|
70 to 80
|
70 to 80
|
70 to 80
|
70 to 85
|
|
|
H2 purity (% dry hydrogen)
|
99,97
|
99,97
|
99,97
|
99,97
|
99,97
|
99,97
|
99,97
|
|
|
Average H2 consumption at rated power (m3/kWh)
|
|
|
up to 0,73
|
up to 0,73
|
up to 0,73
|
up to 0,73
|
up to 0,73
|
|
|
Fuel Cell efficiency at rated power (%)
|
at least 42
|
at least 42
|
at leas 47,8
|
at least 47,8
|
at least 47,8
|
at least 47,8
|
at least 47,8
|
|
|
Hydrogen inlet pressure (Mpag)
|
0,6 to 1.0
|
0,6 to 1.0
|
1,1 to 1,3
|
1,1 to 1,3
|
1,1 to 1,3
|
1,1 to 1,3
|
1,1 to 1,3
|
|
