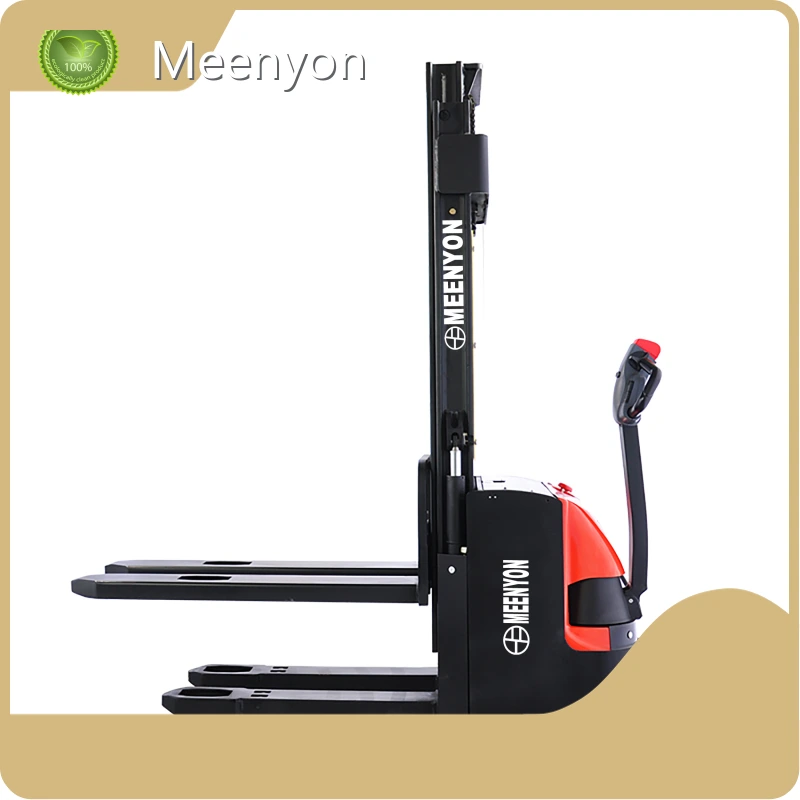

Product details of the pallet stacker
Product Description
The provided pallet stacker is manufactured with utmost precision with the use of exceptional quality raw materials and the pioneering technology. The product is quality assured as it has undergone numerous rigorous tests before coming into the market. Meenyon strictly monitors performance of quality control systems to ensure effectiveness and efficiency.
Product specifications
| Item | Name | Unit (Code) | |
| Feature | |||
| 1.1 | Brand | MEENYON | |
| 1.2 | Model | ES12-12WAI | |
| 1.3 | Power | Electric | |
| 1.4 | Operation | Walking | |
| 1.5 | Rated load | Q (kg) | 2000 |
| 1.6 | Load center distance | c (mm) | 600 |
| Weight | |||
| 2.1 | Dead weight (incl. battery) | kg | 940 |
| Size | |||
| 4.2 | Lowest height after the gantry is lowered | h1 (mm) | 1970 |
| 4.4 | Standard max lifting height | h3 (mm) | 2915 |
| 4.15 | Fork drop height | h13(mm) | 95 |
| 4.19 | Overall length | l1 (mm) | 1879 |
| 4.21 | Overall width | b1/ b2 (mm) | 800 |
| 4.25 | Fork outside distance | b5 (mm) | 560 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2410 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2382 |
| 4.35 | Turning radius | Wa (mm) | 1552 |
| Performance parameter | |||
| 5.1 | Walk speed, full /no load | km/ h | 5.0 / 5.5 |
| 5.2 | Lifting speed, full /no load | m/ s | 0.11/0.16 |
| Motor, Power unit | |||
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 24V/210Ah |
Company Advantage
• Meenyon's products are exported to many countries and regions around the world.
• Unique geographical advantages and abundant social resources create good conditions for Meenyon's development.
• Our company innovates business model, so as to sincerely provide professional one-stop service for consumers.
• Meenyon was officially founded in After years of exploration and development, we obtain significant achievements in the industry.
If you need to repair the electronic products or accessories purchased in Meenyon, you can contact us to make an appointment, and we will provide you with a solution in time.
