Meenyon offers professional OEM & ODM services for all kinds of electric forklift, electric pallet truck, electric stacker and diesel forklift.

ODM Electric Tow Tractor for Sale-1 1
ODM Electric Tow Tractor for Sale-1 2
ODM Electric Tow Tractor for Sale-1 3
ODM Electric Tow Tractor for Sale-1 4
ODM Electric Tow Tractor for Sale-1 5
ODM Electric Tow Tractor for Sale-1 1
ODM Electric Tow Tractor for Sale-1 2
ODM Electric Tow Tractor for Sale-1 3
ODM Electric Tow Tractor for Sale-1 4
ODM Electric Tow Tractor for Sale-1 5

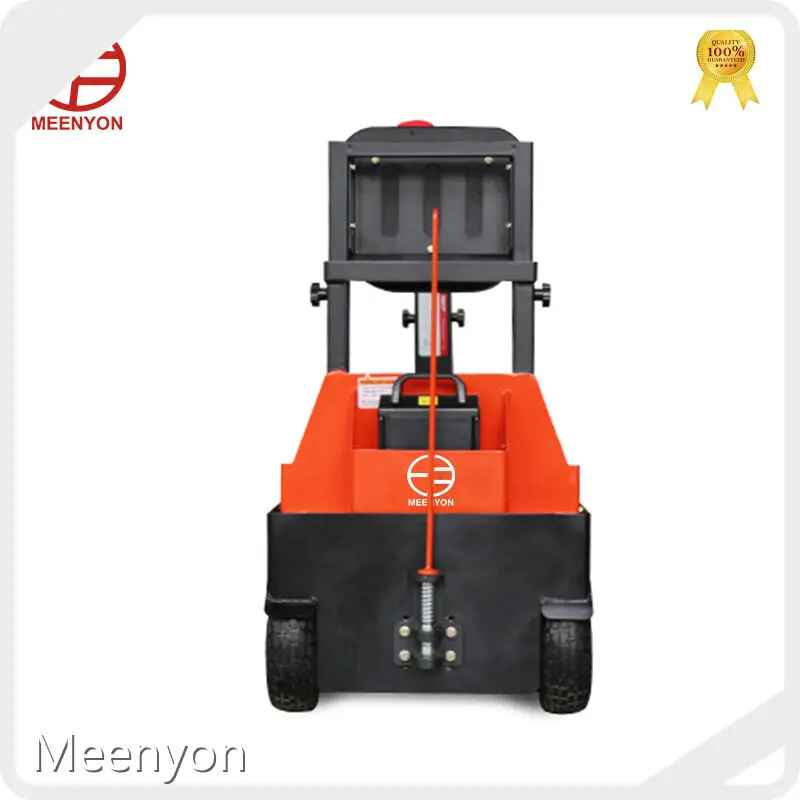

ODM Electric Tow Tractor for Sale-1

Inquiry

Company Advantages

· Meenyon electric tow tractor for sale is produced in a standard production environment.

· The product is applied to provide excellent and efficient performance.

· With prospering economy development, Meenyon always puts a lot of efforts on the quality assurance of electric tow tractor for sale.

Introduction

Pro4-xj1
New design
◆ Equipped with lithium battery, recharge and use, easy to replace ◆ High torque electromagnetic brake, safe and effective
Pro4-xj2
Lighter
◆ Lighter, narrower and smaller body for different working conditions ◆ Compact overall design, cost-effective, best to meet user needs ◆ The operation is flexible and convenient, and the battery lasts longer

Convenient And Comfortable Operation

◆  Operation handle four-way adjustment, more comfortable operation


◆  The rear backrest is adjustable up and down, suitable for drivers of different sizes


◆  Standing operation is convenient for loading and unloading


◆  Adopt the handling car handle, endless speed change, easy to use

Pro4-xj3

COMPANY STRENGTH

Item

Name

Unit (Code)



Feature







1.1 Brand   MEENYON
1.2 Model   QDD151T
1.3 Power   Electric
1.4 Operation   Standing
1.5 Rated load Q (kg) 1500

Weight







2.1 Dead weight (incl. battery) kg 150

Tires, chassis







3.1 Tire type, drive wheel/carrier wheel (steering wheel)   Pneumatic tire/Solid tire
3.2 Front wheel size (diameter × width)   2x Ф250x85

Size







4.8 Height of seats and platforms h7 (mm) 120
4.9 Minimum/maximum height of operating position handle lever h14 (mm) 1130~1340
4.12 Height of traction coupler h10(mm) 123/146/169
4.19 Overall length l1 (mm) 1280.5
4.21 Overall width b1/ b2 (mm) 620
4.35 Turning radius Wa (mm) 1270

Performance parameter







5.1 Walk speed, full/no load km/ h 4.5/5
5.5 Traction, full/no load N 300
5.6 maximum traction force,full/no load N 466
5.7 Climb, full load/no load % 3 / 16
5.10. Service brake type   electromagnetism

 Motor, Power unit







6.1 Rated power of drive motor S2 60min kW 0.8
6.4 Battery voltage/nominal capacity V/ Ah 24/20

Drive/lifting mechanism







8.1 Drive Control Type   DC

Other parameters







10.5 Steering type   mechanical
10.7 Noise level dB (A) 70
10.8 Traction coupling, according to DIN15170 type   Pin type


Company Features

· Meenyon brand takes the lead in the field of electric tow tractor for sale.

· Solid economic foundation of Meenyon better guarantees the quality of electric tow tractor for sale. The assurance of technical force also guarantees the quality of electric tow tractor for sale. Engaging in introducing and developing the technical force, electric tow tractor for sale made by Meenyon is famous for its good quality.

· MEENYON provides outstanding service for every customers. Contact!


Application of the Product

electric tow tractor for sale, one of Meenyon's main products, is deeply favored by customers. With wide application, it can be applied to different industries and fields.

Meenyon is dedicated to providing professional, efficient and economical solutions for customers, so as to meet their needs to the greatest extent.


Product Comparison

Compared with products in the same category,Meenyon's electric tow tractor for sale's outstanding advantages are as follows.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
