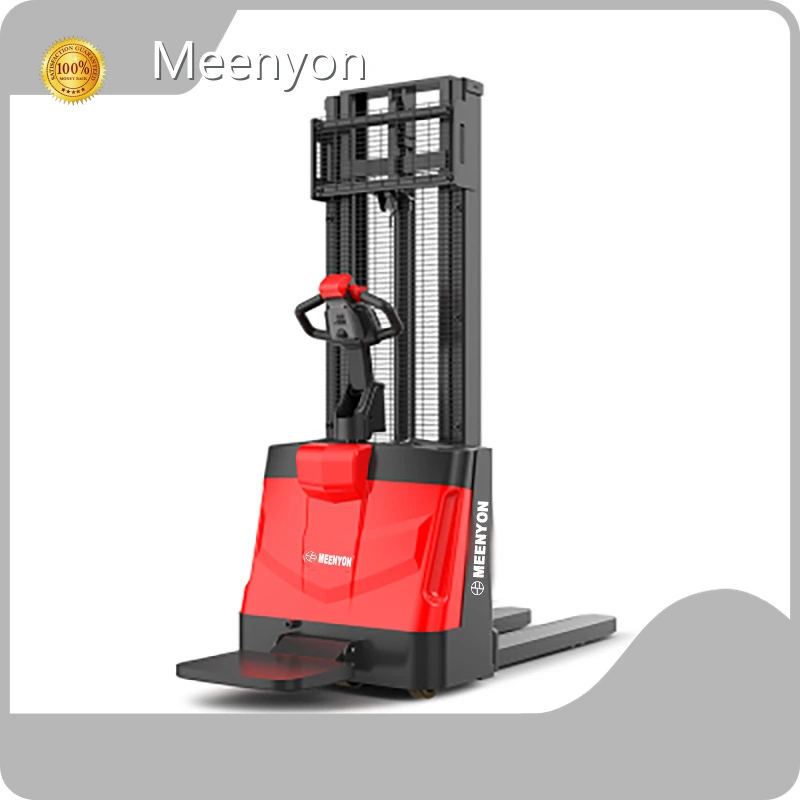

Product details of the pallet stacker truck
Product Overview
Our production technology of Meenyon pallet stacker truck is ahead in the industry. The product meets with the industrial safety and quality standards. Meenyon's pallet stacker truck is widely used in the industry. This product is provided in different grades and qualities so that it can serve all purposes and requirements.
Product Information
Meenyon's pallet stacker truck is processed based on advanced technology. It has excellent performances in the following details.
Product specifications
| Item | Name | Unit (Code) | |
| Feature | |||
| 1.1 | Brand | MEENYON | |
| 1.2 | Model | ESR151 | |
| 1.3 | Power | Electric | |
| 1.4 | Operation | Walking | |
| 1.5 | Rated load | Q (kg) | 1500 |
| 1.6 | Load center distance | c (mm) | 500 |
| Weight | |||
| 2.1 | Dead weight (incl. battery) | kg | 670 |
| Size | |||
| 4.2 | Lowest height after the gantry is lowered | h1 (mm) | 2106 |
| 4.4 | Standard max lifting height | h3 (mm) | 3016 |
| 4.15 | Fork drop height | h13(mm) | 90 |
| 4.19 | Overall length | l1 (mm) | 1832 |
| 4.21 | Overall width | b1/ b2 (mm) | 850 |
| 4.25 | Fork outside distance | b5 (mm) | 570 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2328 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2262 |
| 4.35 | Turning radius | Wa (mm) | 1488 |
| Performance parameter | |||
| 5.1 | Travel speed, full / no load | km/ h | 4.0 / 4.5 |
| 5.2 | Max climb, full / no load | m/ s | 0.10/0.14 |
| Motor, Power unit | |||
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 24/105 |
Company Information
Meenyon is a comprehensive manufacturer. Our business varies from production and processing to sales. And our main focus is the production of To better deal with our business, our company has always held a firm belief in the core value of 'cooperation, mutual benefit and win-win', and complied with the production principle of 'technical innovation, scientific management'. We insist on establishing good cooperative relationships with new and old customers in the industry, sharing scientific management concepts with partners and learning from each other, so as to make progress together and strive to achieve mutual benefit. Our high quality teams that understands technology and knows well about management, lay a solid foundation for our development and growth. Since the establishment, Meenyon has always been focusing on the R&D and production of With great production capability, we can provide customers with personalized solutions according to their needs.
Welcome everyone to come for consultation.
