Pedestrian Stackers Best Supplier

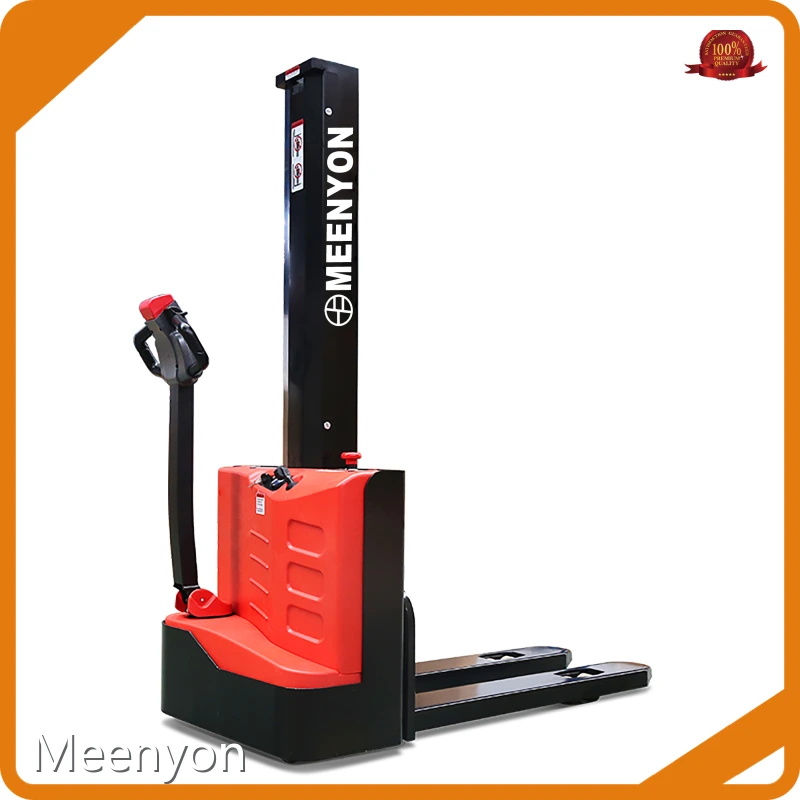

Product details of the pedestrian stackers
Product Introduction
With the assistance of our state-of-the-art technology and proficient team members, Meenyon pedestrian stackers has delicate workmanship. This product is presented to customers after proper inspections. Meenyon has a network of highly qualified agents and contributing distributors.
Product specifications
| Item | Name | Unit (Code) | ||
| Feature | ||||
| 1.1 | Brand | MEENYON | MEENYON | |
| 1.2 | Model | ES10-10MM | ES12-12MM | |
| 1.3 | Power | Electric | Electric | |
| 1.4 | Operation | Walking | Walking | |
| 1.5 | Rated load | Q (kg) | 1000 | 1200 |
| 1.6 | Load center distance | c (mm) | 600 | 600 |
| Weight | ||||
| 2.1 | Dead weight (incl. battery) | kg | 462 | 462 |
| Size | ||||
| 4.2 | Lowest height after the gantry is lowered | h1 (mm) | 1940 | 1940 |
| 4.4 | Standard max lifting height | h3 (mm) | 1517 | 1517 |
| 4.15 | Fork drop height | h13(mm) | 88 | 88 |
| 4.19 | Overall length | l1 (mm) | 1615 | 1615 |
| 4.21 | Overall width | b1/ b2 (mm) | 800 | 800 |
| 4.25 | Fork outside distance | b5 (mm) | 550 | 550 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2137 | 2137 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2062 | 2062 |
| 4.35 | Turning radius | Wa (mm) | 1295 | 1295 |
| Performance parameter | ||||
| 5.1 | Walk speed, full /no load | km/ h | 4 / 4.5 | 4 / 4.5 |
| 5.2 | Lifting speed, full /no load | m/ s | 0.12/0.22 | 0.12/0.22 |
| Motor, Power unit | ||||
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 2*12V/85Ah | 2*12V/85Ah |
Company Feature
• Since the establishment in Meenyon has always maintained our initial heart, good attitude, and great enthusiasm. We have overcome the difficulties in the development. Currently, we are a good example for other companies to learn from. We gain a certain position in the industry based on great business strength.
• Meenyon believes credibility has a huge impact on the development. Based on customer demand, we provide excellent services for consumers with our best team resources.
• There are multi main traffic lines passing through our company's location and the developed traffic network makes for the supplies distribution.
• Our company has a group of highly educated, high-quality and high-level talents. They are the internal motivation for our sustainable development.
Just leave your contact information and Meenyon will provide you with industry information for free.
