Meenyon offers professional OEM & ODM services for all kinds of electric forklift, electric pallet truck, electric stacker and diesel forklift.

Power Pallet Jack - - Meenyon 1
Power Pallet Jack - - Meenyon 1

Power Pallet Jack - - Meenyon

Inquiry

Product specifications

Item Name Unit (code)
Feature
1.1 Brand   MEENYON MEENYON MEENYON MEENYON
1.2 Model   RPL201H RPL251 RPL201 RPL301
1.3 Power   Electric Electric Electric Electric
1.4 Operation   Standing Standing Standing Standing
1.5 Rated load Q (kg) 2000 2500 2000 3000
1.6 Load center distance c (mm) 600 600 600 600
Weight
2.1 Dead weight (incl. battery) kg 670 790 670 790
Tires, chassis
3.2 Front wheel size (diameter × width)   Ф230x75 Ф230x75 Ф230x75 Ф230x75
Size
4.4. Standard max lifting height h3 (mm) 120 120 120 120
4.15 Fork drop height h13(mm) 85 85 85 85
4.19 Overall length l1 (mm) 1954(2024) 1954 1954(2024) 1954
4.21 Overall width b1/ b2 (mm) 734 734 734 734
4.25 Fork outside distance b5 (mm) 540/685 560 / 685 540/685 560 / 685
4.34.1 Pallet 1000 × 1200 cross path width Ast (mm) 2606 2590 2606 2590
4.34.2 Pallet 800 × 1200 cross path width Ast (mm) 2463 2447 2463 2447
4.35 Turning radius Wa (mm) 1806/1826 1790 1806/1826 1790
Performance parameter
5.1 Walk speed, full/no load km/ h 9 / 12 5.5 / 6 7.5 / 8 5.5 / 6
5.8 Max climb, full/no load % 8 / 16 6 / 16 8 / 16 6 / 16
6.4 Battery voltage/nominal capacity V/ Ah Li 24V/150Ah Li 24V / 150Ah Li 24V/150Ah Li 24V / 150Ah

About UsaAbout The RPL Series

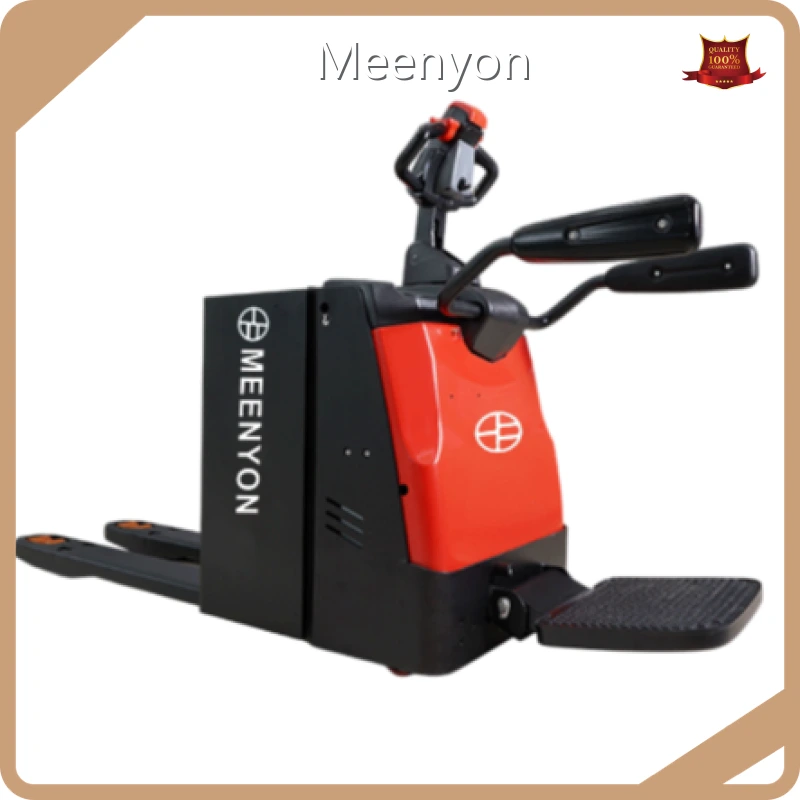

The RPL series is the latest version of the ride-on pallet truck from MEENYON.

They are fully designed around the concept of integrated Li-Ion battery technology and offers quick, opportunity charging and electric power steering are standard.

The RPL 201 can be equipped with a high-speed option for even higher productivity.

The new released RPL 251 and 301 are able to realize heavy-duty applications and satisfy different working conditions.

undefined

advantage

Power Pallet Jack - - Meenyon 3
Lithium-ion technology
The RPL series is equipped with 24V/210Ah Li-ion battery that supports opportunity charging. Operators can charge the truck at preferable time during the day without disrupting working schedules.
Power Pallet Jack - - Meenyon 4
Robust safety arms
The safety arms of the RPL series are produced from strengthened steel to ensure a long lifetime of the trucks structure.
Power Pallet Jack - - Meenyon 5
More precise working mechanism
Using slider motion structure and one-time full-axis processing technology to ensure higher working accuracy.
Power Pallet Jack - - Meenyon 6
COMPANY STRENGTH
Our in-house designers and engineers have produced countless great designs for customers from different industries
Power Pallet Jack - - Meenyon 7
Strengthened loading wheel assembly
RPL251 and RPL301 come with strengthened frames and updated links of the loading wheels to improve wear resistance and meet heavy duty applications.

product display

明元图片5
明元图片5
明元图片4
明元图片4
明元图片3
明元图片3
明元图片2
明元图片2


Company Advantages

· The fashionable design of power pallet jack allows customers to enjoy the aesthetics.

· Systematic quality control: it is the key control factors in the whole production process. From development to the shipment, the quality of this product is under the whole control of the quality team.

· Meenyon follows the standard way to strengthen the administration of enterprises.


Company Features

· Meenyon is an award-winning designer and manufacturer of power pallet jack. We have established an all-round product lineup.

· Advanced technology, high-output machinery and well-trained workers ensure high productivity and high quality for Meenyon.

· Our business philosophy is simple and timeless. We work closely with clients to find a perfect combination of products and services that provide a comprehensive balance of performance and pricing effectiveness.


Application of the Product

Our power pallet jack meets the needs of multiple industries and fields.

Meenyon provides comprehensive and reasonable solutions based on customer's specific situations and needs.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
