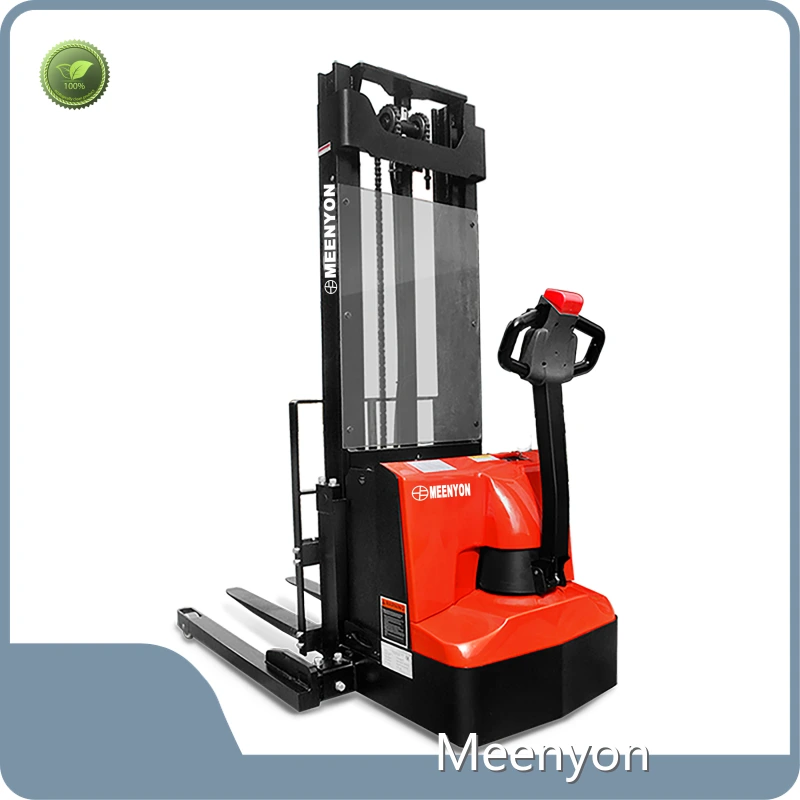

Quality Electric Straddle Pallet Stacker Manufacturer
Product details of the electric straddle pallet stacker
Product Introduction
The costs for Meenyon electric straddle pallet stacker is reduced in the design phase. Compared with other products, the product has obvious superiority such as long service life, stable performance, and good usability. The product enjoys good sales record in many countries, having a larger market share.
Product specifications
| Item | Name | Unit (Code) | |
| Feature | |||
| 1.1 | Brand | MEENYON | |
| 1.2 | Model | ES12-25WA | |
| 1.3 | Power | Electric | |
| 1.4 | Operation | Walking | |
| 1.5 | Rated load | Q (kg) | 1200 |
| 1.6 | Load center distance | c (mm) | 600 |
| Weight | |||
| 2.1 | Dead weight (incl. battery) | kg | 1150 |
| Size | |||
| 4.2 | Lowest height after the gantry is lowered | h1 (mm) | 2110 |
| 4.4 | Standard max lifting height | h3 (mm) | 3220 |
| 4.15 | Fork drop height | h13(mm) | 60 |
| 4.19 | Overall length | l1 (mm) | 1947 |
| 4.21 | Overall width | b1/ b2 (mm) | 1120/1220/1320/1420 |
| 4.25 | Fork outside distance | b5 (mm) | 200-760 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2405 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2400 |
| 4.35 | Turning radius | Wa (mm) | 1490 |
| Performance parameter | |||
| 5.1 | Travel speed, full / no load | km/ h | 5.0/5.5 |
| 5.2 | Max climb, full / no load | m/ s | 0.127/0.23 |
| Motor, Power unit | |||
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 24V/210Ah |
Company Advantage
• Meenyon was built in Based on the firm belief and strong perseverance, we have successfully gone through years of trials and hardships. Now we are a role model enterprise of leading technology in the industry.
• Meenyon enjoys a superior location with traffic convenience, which creates advantages for outward sales.
• We keep improving after sales service mechanism and take the lead in building a professional after sales service team in the industry. Our team focuses on answering various doubts of customers and meeting their different needs.
Feel free to contact Meenyon. Your trust is the best support for us!
