Rideable Pallet Jack Company
Product specifications
| Item | Name | Unit (code) | ||||
| Feature | ||||||
| 1.1 | Brand | MEENYON | MEENYON | MEENYON | MEENYON | |
| 1.2 | Model | RPL201H | RPL251 | RPL201 | RPL301 | |
| 1.3 | Power | Electric | Electric | Electric | Electric | |
| 1.4 | Operation | Standing | Standing | Standing | Standing | |
| 1.5 | Rated load | Q (kg) | 2000 | 2500 | 2000 | 3000 |
| 1.6 | Load center distance | c (mm) | 600 | 600 | 600 | 600 |
| Weight | ||||||
| 2.1 | Dead weight (incl. battery) | kg | 670 | 790 | 670 | 790 |
| Tires, chassis | ||||||
| 3.2 | Front wheel size (diameter × width) | Ф230x75 | Ф230x75 | Ф230x75 | Ф230x75 | |
| Size | ||||||
| 4.4. | Standard max lifting height | h3 (mm) | 120 | 120 | 120 | 120 |
| 4.15 | Fork drop height | h13(mm) | 85 | 85 | 85 | 85 |
| 4.19 | Overall length | l1 (mm) | 1954（2024） | 1954 | 1954（2024） | 1954 |
| 4.21 | Overall width | b1/ b2 (mm) | 734 | 734 | 734 | 734 |
| 4.25 | Fork outside distance | b5 (mm) | 540/685 | 560 / 685 | 540/685 | 560 / 685 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2606 | 2590 | 2606 | 2590 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2463 | 2447 | 2463 | 2447 |
| 4.35 | Turning radius | Wa (mm) | 1806/1826 | 1790 | 1806/1826 | 1790 |
| Performance parameter | ||||||
| 5.1 | Walk speed, full/no load | km/ h | 9 / 12 | 5.5 / 6 | 7.5 / 8 | 5.5 / 6 |
| 5.8 | Max climb, full/no load | % | 8 / 16 | 6 / 16 | 8 / 16 | 6 / 16 |
| 6.4 | Battery voltage/nominal capacity | V/ Ah | Li 24V/150Ah | Li 24V / 150Ah | Li 24V/150Ah | Li 24V / 150Ah |
About UsaAbout The RPL Series

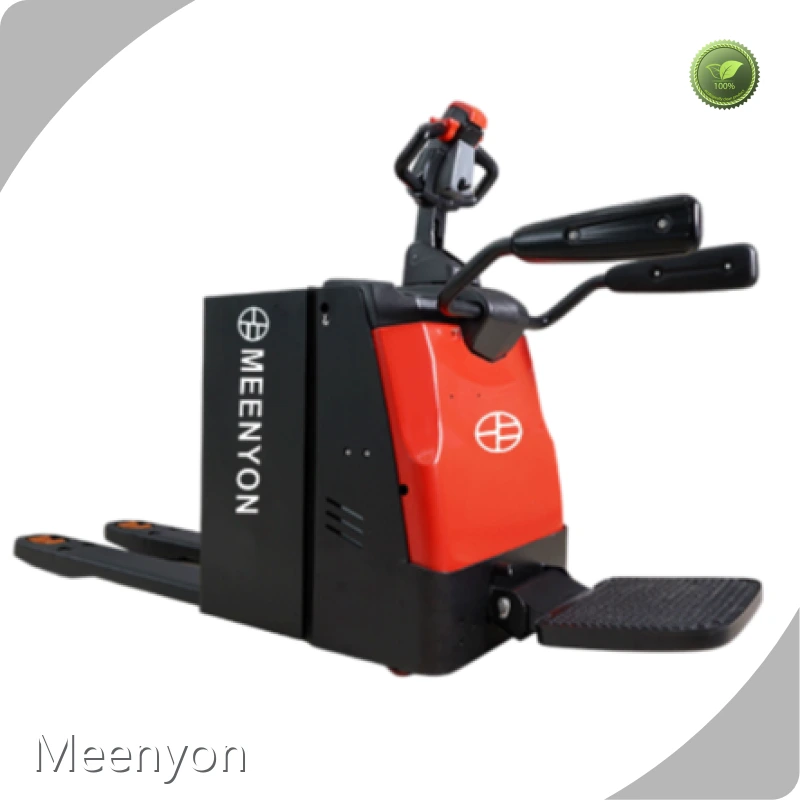

The RPL series is the latest version of the ride-on pallet truck from MEENYON.
They are fully designed around the concept of integrated Li-Ion battery technology and offers quick, opportunity charging and electric power steering are standard.
The RPL 201 can be equipped with a high-speed option for even higher productivity.
The new released RPL 251 and 301 are able to realize heavy-duty applications and satisfy different working conditions.
advantage
Company Advantages
· Meenyon rideable pallet jack adopts advanced and safet raw material.
· Since we have established a good quality management system to prevent any possible defects, the quality of the products is guaranteed.
· Our professional designers can provide customized design service for rideable pallet jack.
Company Features
· With years of development, Meenyon has been one of the leading producer and distributor of rideable pallet jack in the industry. We are known for providing high-quality products.
· The company has excellent high-quality research and development team and market management talents.
· Our commitment to customers is to be the best, most flexible supplier, with the capability to adapt to changing market demands.
Application of the Product
Our rideable pallet jack can be used in multiple areas of multiple industries.
Meenyon is rich in industrial experience and is sensitive about customers' needs. We can provide comprehensive and one-stop solutions based on customers' actual situations.
