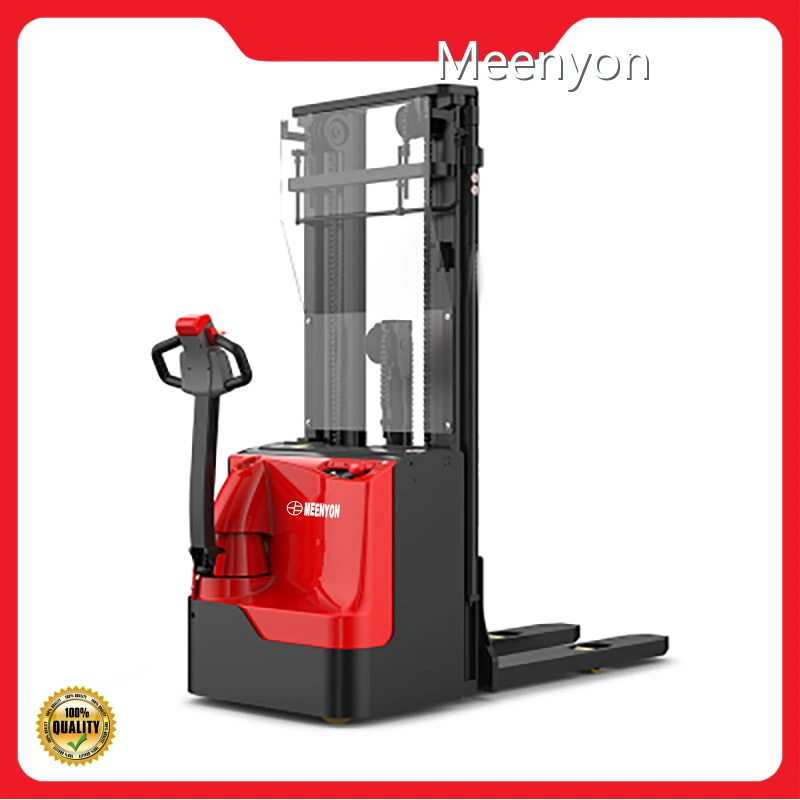

Product details of the stacker forklift
Product Overview
stacker forklift stands out in global market with deft design. This product is presented to customers after proper inspections. As an unprecedented enterprise, Meenyon has been always focusing on the service except quality assurance.
Product Information
Our stacker forklift is more competitive than similar products, as shown in the following aspects.
Product specifications
| Item | Name | Unit (Code) | |
| Feature | |||
| 1.1 | Brand | MEENYON | |
| 1.2 | Model | WSA161 | |
| 1.3 | Power | Electric | |
| 1.4 | Operation | Walking | |
| 1.5 | Rated load | Q (kg) | 1600 |
| 1.6 | Load center distance | c (mm) | 600 |
| Weight | |||
| 2.1 | Dead weight (incl. battery) | kg | 740 |
| Size | |||
| 4.2 | Lowest height after the gantry is lowered | h1 (mm) | 1970 |
| 4.4 | Gantry travel | h3 (mm) | 3000 |
| 4.4... | Gantry lifting height (fork face to ground) | h23 (mm) | 2915 |
| 4.15 | Fork drop height | h13(mm) | 90 |
| 4.19 | Overall length | l1 (mm) | 1881 |
| 4.21 | Overall width | b1/ b2 (mm) | 800 |
| 4.25 | Fork outside distance | b5 (mm) | 570 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2383 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2355 |
| 4.35 | Turning radius | Wa (mm) | 1507 |
| Performance parameter | |||
| 5.1 | Travel speed, full / no load | km/ h | 5.0/5.5 |
| 5.2 | Max climb, full / no load | m/ s | 0.2/0.26 |
| Motor, Power unit | |||
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 24/100 |
Company Introduction
With hardworking employees, Meenyon is also more courageous to provide better stacker forklift. Meenyon has a large number of domestic senior experts and professors for stacker forklift development. During the production processes, we consciously reduce pollution. We have introduced professional wastewater treating and waste recycling facilities to help us control waste discharge.
Our products are of reliable quality, with great cost performance and you can purchase them with confidence. If you are in need, please contact us for business discussion.
