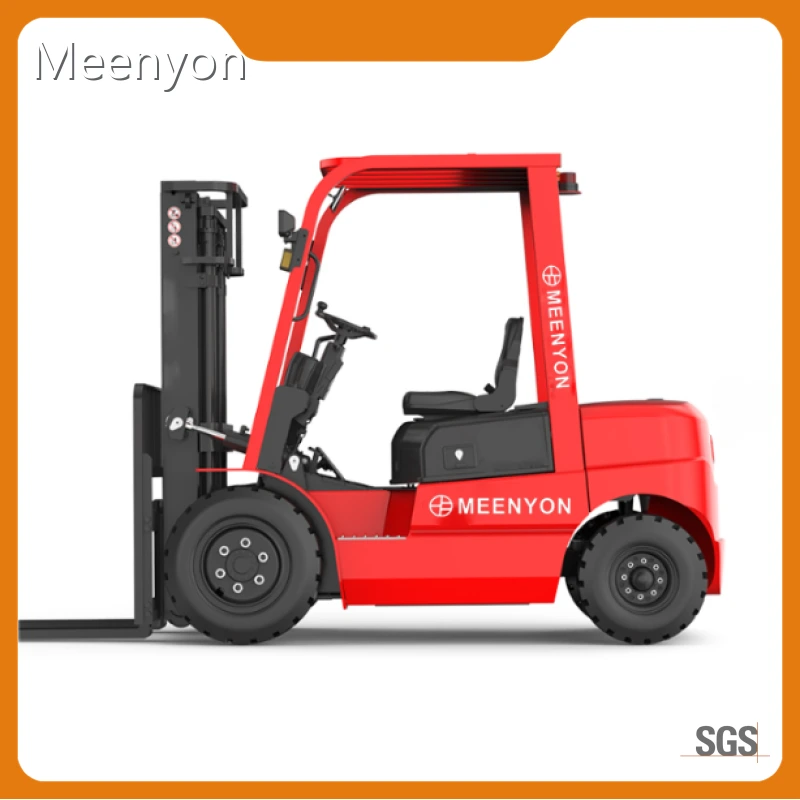

Product details of the 4 wheel forklift
Quick Overview
International production standard: The production of 4 wheel forklift is carried out in conformity with the internationally-recognized production standards. We constantly monitor and adjust the production processes to ensure that the quality of the product meets the requirements of both customers and the company’s policy. Meenyon strictly control every detail of 4 wheel forklift from internal materials to external packaging.
Product Description
Compared with other similar products, our 4 wheel forklift has more advantages, specifically in the following aspects.
Product specifications
| Item | Name | Unit (Code) | ||||
| Feature | ||||||
| 1.1 | Brand | MEENYON | MEENYON | MEENYON | MEENYON | |
| 1.2 | Model | ICE302B2 | ICE252B2 | ICE352B2 | ICE322B2 | |
| 1.3 | Power | Electric | Electric | Electric | Electric | |
| 1.4 | Operation | Car type | Car type | Car type | Car type | |
| 1.5 | Rated load | Q (kg) | 3000 | 2500 | 3500 | 3200 |
| 1.6 | Load center distance | c (mm) | 500 | 500 | 500 | 500 |
| Weight | ||||||
| 2.1 | Dead weight (incl. battery) | kg | 4080 | 3770 | 4560 | 4270 |
| Tires, chassis | ||||||
| 3.1 | Tire type, drive wheel/carrier wheel (steering wheel) | Pneumatic tire | Pneumatic tire | Pneumatic tire | Pneumatic tire | |
| Size | ||||||
| 4.4 | Max lifting height of standard frame | h3 (mm) | 3000 | 3000 | 3000 | 3000 |
| 4.7 | Top guard (cab) height | h6 (mm) | 2160 | 2160 | 2190 | 2160 |
| 4.20. | Length to vertical face of fork | l2 (mm) | 2665 | 2503 | 2726 | 2726 |
| 4.21 | Overall width | b1/ b2 (mm) | 1230 | 1154 | 1230 | 1230 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 4118 | 3985 | 4170 | 4170 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 4318 | 4195 | 4370 | 4370 |
| 4.35 | Turning radius | Wa (mm) | 2437 | 2290 | 2484 | 2484 |
| Performance parameter | ||||||
| 5.1 | Travel speed, full / no load | km/ h | 11 / 12 | 11 / 12 | 11 / 12 | 11 / 12 |
| 5.8 | Max climb, full / no load | % | 15/15 | 15/15 | 15/15 | 15/15 |
| Motor, Power unit | ||||||
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 80/205 | 80/150 | 80/280 | 80/205 |
