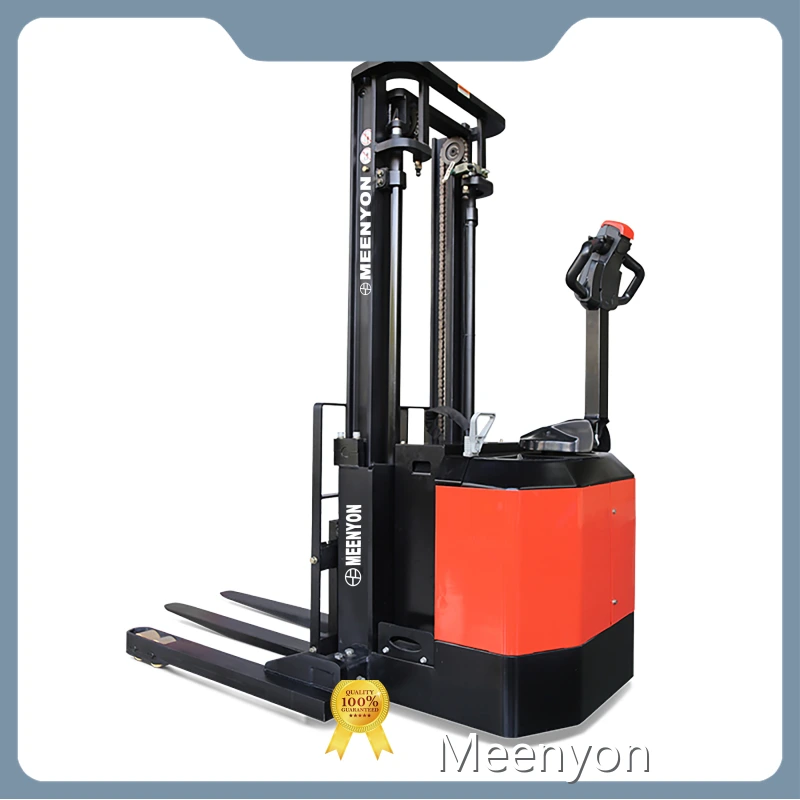

Top Selling Electric Stacker Pallet Jack Best Supplier
Product details of the Electric Stacker Pallet Jack
Product Overview
Meenyon Electric Stacker Pallet Jack comes in various innovative design styles. The quality testing unit is built under strict quality control parameters. Meenyon offers a fast delivery time to customers to ensure the business efficiency.
Product Information
Meenyon's Electric Stacker Pallet Jack has superior performances in the following details.
Product specifications
| Item | Name | Unit (Code) | ||
| Feature | ||||
| 1.1 | Brand | MEENYON | MEENYON | |
| 1.2 | Model | ES18-40WA | ES14-30WA | |
| 1.3 | Power | Electric | Electric | |
| 1.4 | Operation | Walking | Walking | |
| 1.5 | Rated load | Q (kg) | 1800 | 1400 |
| 1.6 | Load center distance | c (mm) | 600 | 600 |
| Weight | ||||
| 2.1 | Dead weight (incl. battery) | kg | 1520 | 1320 |
| Size | ||||
| 4.2 | Lowest height after the gantry is lowered | h1 (mm) | 2118 | 2118 |
| 4.4 | Standard max lifting height | h3 (mm) | 3135 | 3140 |
| 4.15 | Fork drop height | h13(mm) | 65 | 60 |
| 4.19 | Overall length | l1 (mm) | 2092 | 1987 |
| 4.21 | Overall width | b1/ b2 (mm) | 1270/1370/1470 | 1270/1370/1470 |
| 4.25 | Fork outside distance | b5 (mm) | 200-760 | 200-760 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2560 | 2460 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2560 | 2460 |
| 4.35 | Turning radius | Wa (mm) | 1645 | 1545 |
| Performance parameter | ||||
| 5.1 | Travel speed, full / no load | km/ h | 4.5/5.0 | 5.5/6.0 |
| 5.2 | Max climb, full / no load | m/ s | 0.127/0.23 | 0.127/0.23 |
| Motor, Power unit | ||||
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 24V/280Ah | 24V/210Ah |
Company Introduction
Meenyon is committed to the production of Electric Stacker Pallet Jack since the day of its establishment. Meenyon has stepped up efforts to accelerate technological development. Meenyon will fully prepare for the company's industrial layout and strategic development of the brand. Call now!
If you need to buy our products, welcome to contact us!
