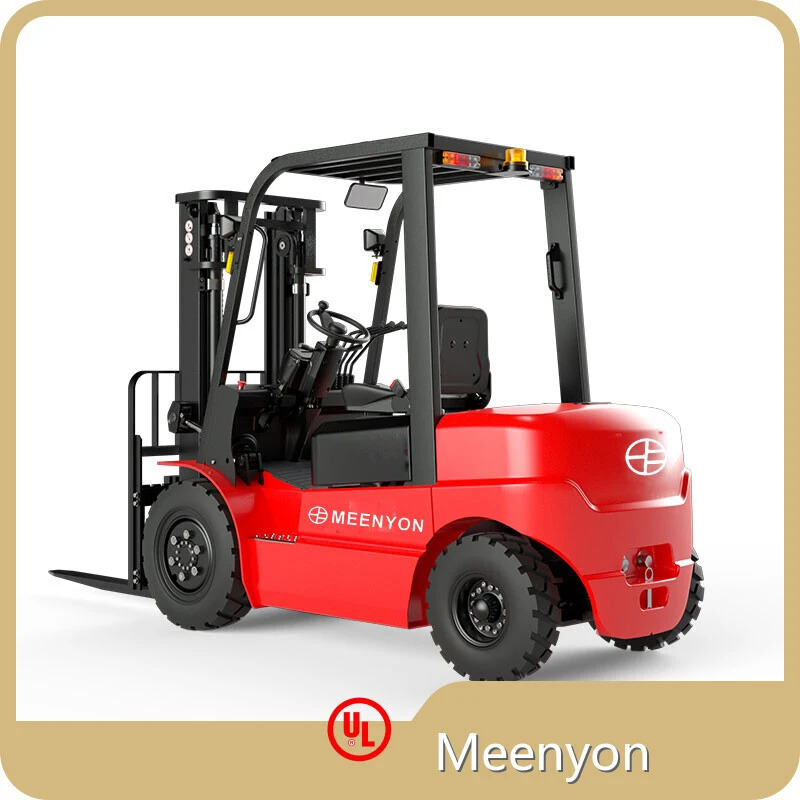

Product details of the 1.5 ton electric forklift
Quick Detail
Meenyon 1.5 ton electric forklift is designed with an aesthetic-pleasing looking. The product has never failed in the aspects of long-lasting performance and durability. Multiple in function and wide in application, 1.5 ton electric forklift can be used in many industries and fields. With so many advantages, the product can perfectly meet the customer's requirement and tends to be used widely in the future market.
Product Introduction
We will show you more detailed information of 1.5 ton electric forklift.
Pull the battery sideways to replace the battery, and the power comes in instantly.
(Optional battery capacity)
1. The whole vehicle adopts the high-strength box-type frame of an internal combustion vehicle, which can meet the harsh outdoor working conditions.
2. The entire vehicle is IPX4 waterproof and supports all-weather use indoors and outdoors.
3. High ground clearance, can go off-road, and can easily pass through uneven potholes.
4. Wide field of view mast, good front working field of view, does not affect driving sight, making operation efficient and safe
It has strong load capacity and can meet the needs of 3.8 tons heavy cargo handling in the logistics park.
It uses lower carbon, cleaner and more environmentally friendly lithium electric power. Compared with internal combustion vehicles, it has low noise, no dirty exhaust gas, and no acid mist. It meets the needs of indoor use and is beneficial to the health of employees.
1. The reinforced mast is adopted, the rollers are improved, the material is thicker, the load capacity is stronger, and the overall performance is good.
2. The vehicle has a low center of gravity and strong stability, and is suitable for handling goods with large load center distances and attachment operations.
3. Use mature front and rear axles, lifting hydraulics and control systems and other common parts for internal combustion vehicles, which are strong and durable.
4. The entire vehicle is equipped with parking, emergency power-off and other protections for safe driving.
1. The engine cover can be opened at a wide angle for easy maintenance and battery replacement.
2. Lithium batteries are maintenance-free and require less maintenance costs.
3. 5-year lithium battery warranty, lithium iron phosphate battery is highly safe
1. Taking advantage of the lithium battery, the driving space is large and the operation is comfortable.
2. The steering wheel is adjustable to suit drivers with different body shapes and operating habits.
3. The steering system has been finely adjusted, making the turns smooth.
COMPANY STRENGTH
| Item | Name | Unit | |||
|---|---|---|---|---|---|
| Feature | |||||
| 1.1 | Brand | MEENYON | MEENYON | MEENYON | |
| 1.2 | Model | EFX302H Lithium | EFX352H Lithium | EFX382H Lithium | |
| 1.3 | Power | Electric | Electric | Electric | |
| 1.4 | Operation | Car type | Car type | Car type | |
| 1.5 | Rated load | Q (kg) | 3000 | 3500 | 3800 |
| 1.6 | Load center distance | c (mm) | 500 | 500 | 500 |
| Weight | |||||
| 2.1 | Dead weight (incl. battery) | kg | 4530 | 4745 | 5210 |
| Tires, chassis | |||||
| 3.1 | Tire type, drive wheel/carrier wheel (steering wheel) | Pneumatic tire | Pneumatic tire | Solid tire | |
| Size | |||||
| 4.4 | Max lifting height of frame | h3 (mm) | 3000 | 3000 | 3000 |
| 4.7 | Top guard (cab) height | h6 (mm) | 2160 | 2190 | 2190 |
| 4.20 | Length to vertical face of fork | l2 (mm) | 2726 | 2765 | 2800 |
| 4.21 | Overall width | b1/b2 (mm) | 1230 | 1230 | 1230 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 4170 | 4216 | 4256 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 4370 | 4416 | 4456 |
| 4.35 | Turning radius | Wa (mm) | 2484 | 2530 | 2570 |
| Performance parameter | |||||
| 5.1 | Travel speed, full / no load | km/ h | 11/12 | 11/12 | 15/16 |
| 5.8 | Max climb, full / no load | % | 18/24 | 17/23 | 16/20 |
| Motor, Power unit | |||||
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 80/280 | 80/280 | 80/280 |
