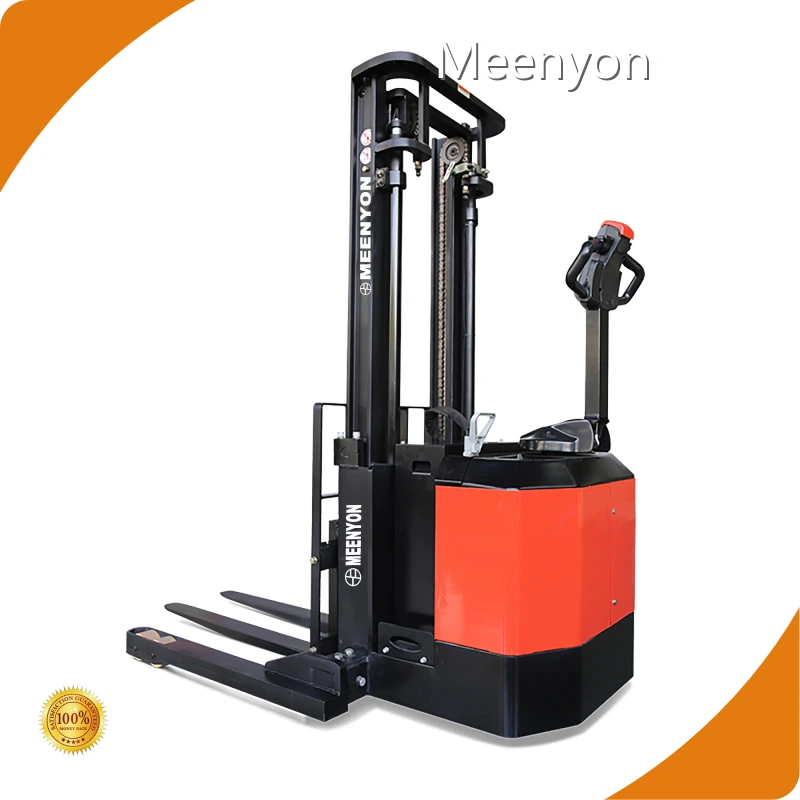

Product details of the walk behind stacker forklift
Quick Detail
Proved in practice, walk behind stacker forklift has reliable shape, reasonable structure and excellent quality. Before tapping into the market, it must pass the scientific test. walk behind stacker forklift developed and produced by our company can be widely used in various industries and professional fields. As the product has gained the trust of the clients around the world, it will be more widely used in the future.
Product Description
Meenyon's walk behind stacker forklift has been greatly improved in the following details.
Product specifications
| Item | Name | Unit (Code) | ||
| Feature | ||||
| 1.1 | Brand | MEENYON | MEENYON | |
| 1.2 | Model | ES18-40WA | ES14-30WA | |
| 1.3 | Power | Electric | Electric | |
| 1.4 | Operation | Walking | Walking | |
| 1.5 | Rated load | Q (kg) | 1800 | 1400 |
| 1.6 | Load center distance | c (mm) | 600 | 600 |
| Weight | ||||
| 2.1 | Dead weight (incl. battery) | kg | 1520 | 1320 |
| Size | ||||
| 4.2 | Lowest height after the gantry is lowered | h1 (mm) | 2118 | 2118 |
| 4.4 | Standard max lifting height | h3 (mm) | 3135 | 3140 |
| 4.15 | Fork drop height | h13(mm) | 65 | 60 |
| 4.19 | Overall length | l1 (mm) | 2092 | 1987 |
| 4.21 | Overall width | b1/ b2 (mm) | 1270/1370/1470 | 1270/1370/1470 |
| 4.25 | Fork outside distance | b5 (mm) | 200-760 | 200-760 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2560 | 2460 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2560 | 2460 |
| 4.35 | Turning radius | Wa (mm) | 1645 | 1545 |
| Performance parameter | ||||
| 5.1 | Travel speed, full / no load | km/ h | 4.5/5.0 | 5.5/6.0 |
| 5.2 | Max climb, full / no load | m/ s | 0.127/0.23 | 0.127/0.23 |
| Motor, Power unit | ||||
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 24V/280Ah | 24V/210Ah |
Company Introduction
Meenyon has a large factory dedicated to walk behind stacker forklift production. Advanced technology greatly improves the quality and performance of walk behind stacker forklift. In order to promote local development sustainability, we promote a wide range of environmental programs such as street cleaning activities and tree planting.
Look forward to inquiries from customers in various industries
