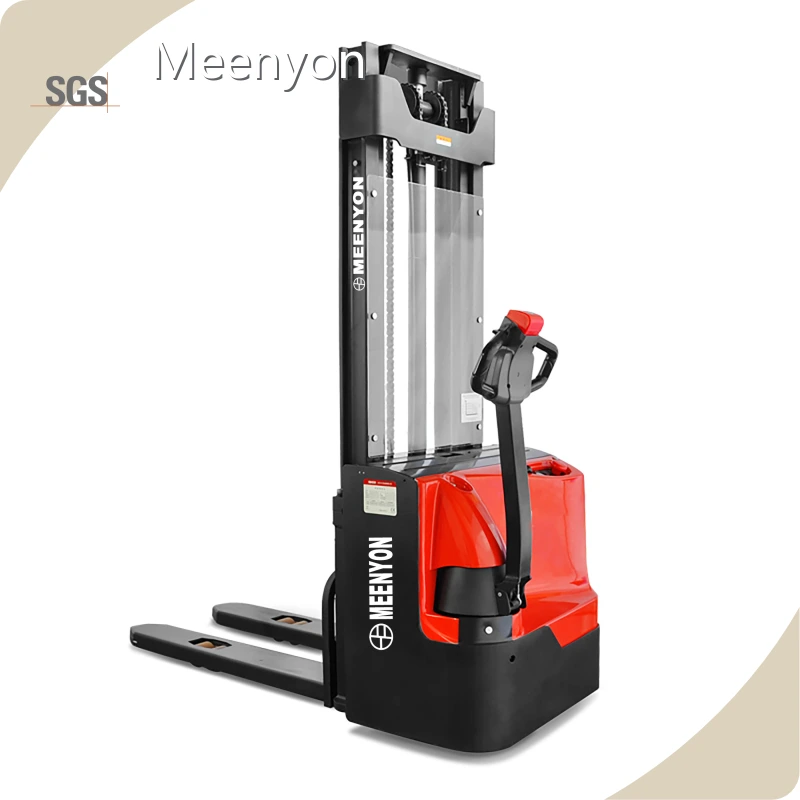

Walkie Lift Truck for Sale
Company Advantages
· Offered Meenyon walkie lift truck is manufactured by finest quality materials keeping in mind set guidelines.
· The quality of the product meets the requirements of domestic and international standards.
· Meenyon has advanced processing technology, exquisite craftsmanship, and strict quality control system.
Product specifications
| Item | Name | Unit (Code) | |||
| Feature | |||||
| 1.1 | Brand | MEENYON | MEENYON | MEENYON | |
| 1.2 | Model | ES14-14WA | ES16-16WA | ES12-12WA | |
| 1.3 | Power | Electric | Electric | Electric | |
| 1.4 | Operation | Walking | Walking | Walking | |
| 1.5 | Rated load | Q (kg) | 1400 | 1600 | 1200 |
| 1.6 | Load center distance | c (mm) | 600 | 600 | 600 |
| Weight | |||||
| 2.1 | Dead weight (incl. battery) | kg | 1050 | 1070 | 950 |
| Size | |||||
| 4.2 | Lowest height after the gantry is lowered | h1 (mm) | 2030 | 2030 | 1970 |
| 4.4 | Standard max lifting height | h3 (mm) | 2912 | 2912 | 2912 |
| 4.15 | Fork drop height | h13(mm) | 88 | 88 | 88 |
| 4.19 | Overall length | l1 (mm) | 1940 | 1940 | 1940 |
| 4.21 | Overall width | b1/ b2 (mm) | 800 | 800 | 800 |
| 4.25 | Fork outside distance | b5 (mm) | 550/685 | 550/685 | 550/685 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2465 | 2465 | 2465 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2440 | 2440 | 2440 |
| 4.35 | Turning radius | Wa (mm) | 1589 | 1589 | 1589 |
| Performance parameter | |||||
| 5.1 | Travel speed, full / no load | km/ h | 5.0/5.5 | 5.0/5.5 | 5.0/5.5 |
| 5.2 | Max climb, full / no load | m/ s | 0.13/0.16 | 0.13/0.16 | 0.13/0.16 |
| Motor, Power unit | |||||
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 24V/210Ah | 24V/230Ah | |
Company Features
· Meenyon has engaged in R&D, production, sales and after-sales service of walkie lift truck products for decade of years.
· We have been supplying nice quality and perfect services for clients from countries of North America, the Middle East, Southeast Asia, and so on. We have been cooperating with these clients for many years. Our factory has set up a comprehensive and rigorous quality control system. The system covers inspections to ensure the quality of the raw materials, machining quality, and the output quality control of finished products. This has given clients assurance on the quality of the products.
· Meenyon is aimed at developing long-lasting and honest partnerships. Please contact.
Product Comparison
After improvement, the walkie lift truck produced by Meenyon is more brilliant in the following aspects.
