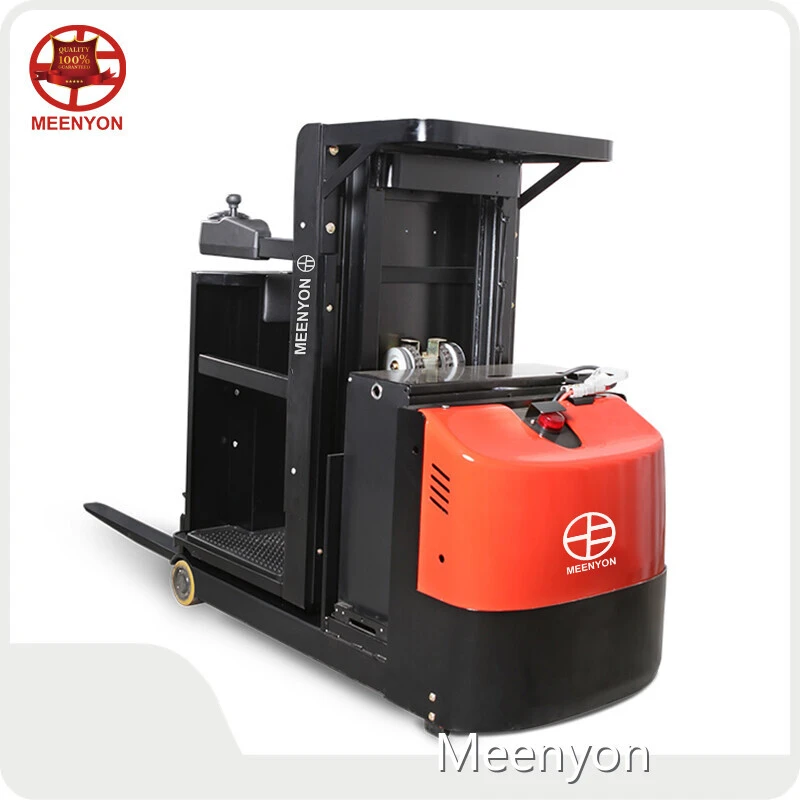

Product details of the walkie picker
Product Introduction
Our prominence in this domain has helped us come up with quality Meenyon walkie picker. The quality check team adopts impeccable quality of testing instruments and system to make sure the best quality. Through an arduous efforts of all the staffs, Meenyon has become a scaled and specialized walkie picker company.
High performance, high reliability
◆ AC drive system, providing strong power; More precise control and smoother operation; ◆ High strength vertical gearbox with ultra long working life; ◆ Low noise and low fault hydraulic station, with multi-layer detection and testing of oil cylinders and pipelines, ensures high reliability of the hydraulic system; ◆ Reliable quality American AMP waterproof connectors and electrical components, with reliable protection and fixation for all wires and cables, greatly reducing electrical failures; ◆ H-shaped gantry channel steel with high bending resistance enhances the overall gantry strength ◆ Super rigid body, ensuring structural flexibility; ◆ Double gantry design for convenient material retrieval: forks can be lifted separately to achieve greater capacity for stacking.
◆ The explosion-proof design of the hydraulic system ensures that even if the oil pipe bursts, the gantry will not quickly descend, improving safety: ◆ Foot operated safety switch to prevent misoperation during walking ◆ Release the travel switch to achieve automatic braking and reverse current braking for safer driving ◆ Emergency power off switch, which can easily cut off all power sources in case of loss of control during operation, to avoid emergency accidents ◆ The anti slip braking function prevents the car from slipping when driving on a large control or slope; ◆ Equipped with a special height sensing control system, it gradually slows down at preset intervals: the driver can hardly feel the change; ◆ Dual monitoring electronic steering, safe and reliable (electric steering) ◆ Speed control function for turning corners for safer driving (electric steering)
◆ Integrated protection integrated control method, fully considering ergonomics; ◆ Setting a backrest in the driving position for more comfortable driving; ◆ The spacious driving and riding space and wide shelf view effect significantly improve driving comfort ◆ The 20MM thick shock absorbing foot pad and flush mounted foot switch allow the driver to maintain a natural standing posture whether driving or forking; ◆ Side pull battery box design, easy to replace batteries, convenient for continuous operation; ◆ Electronic steering for lighter handling (electric steering).
◆ AC motor, maintenance free; ◆ Equipped with a timer and an electricity meter, it is convenient to remind the operator to charge in a timely manner and protect the battery; ◆ The disassembly and assembly of the machine body is convenient, and only by unscrewing two screws to remove the lower cover, the main key components can be inspected, repaired, and replaced ◆ The use of vertical motors makes detection and maintenance of electric heaters, brakes, etc. directly and conveniently, and the maintenance performance is greatly better than that of horizontal motors: ◆ The controller self diagnosis system displays fault codes through a handheld unit, making it more convenient to solve faults; ◆ Low voltage automatic protection, extending battery life.
|
Item
|
Name
|
Unit (Code)
|
|
|
Feature
|
|
|
|
| 1.1 |
Brand |
|
MEENYON |
| 1.2 |
Model |
|
JX2-1 |
| 1.3 |
Power |
|
Electric |
| 1.4 |
Operation |
|
Picking type |
| 1.5 |
Rated load |
Q (kg) |
700/136 |
| 1.6 |
Load center distance |
c (mm) |
600 |
|
Weight
|
|
|
|
| 2.1 |
Dead weight (incl. battery) |
kg |
1620 |
|
Tires, chassis
|
|
|
|
| 3.1 |
Tire type, drive wheel/carrier wheel (steering wheel) |
|
Polyurethane/rubber |
| 3.2 |
Front wheel size (diameter × width) |
|
Φ150×90 |
|
Size
|
|
|
|
| 4.2 |
The lowest height after the gantry is lowered |
h1 (mm) |
1510 |
| 4.3 |
free lift height |
h2 (mm) |
737 |
| 4.4 |
Standard max lifting height |
h3 (mm) |
1063 |
| 4.5 |
The height of the gantry at its highest lift |
h4 (mm) |
2560 |
| 4.7 |
Top guard (cab) height |
h6 (mm) |
1560 |
| 4.8 |
Seat and platform height |
h7 (mm) |
220 |
| 4.14 |
Platform lifting height |
h12(mm) |
1220 |
| 4.15 |
Fork drop height |
h13(mm) |
63 |
| 4.19 |
Overall length |
l1 (mm) |
2520 |
| 4.20. |
Length to vertical face of fork |
l2 (mm) |
1605 |
| 4.21 |
Overall width |
b1/ b2 (mm) |
800 |
| 4.22 |
Fork size |
s/ e/ l (mm) |
35/100/915 |
| 4.25 |
Fork outside distance |
b5 (mm) |
560 |
| 4.34.1 |
Pallet 1000 × 1200 cross path width |
Ast (mm) |
2950 |
| 4.34.2 |
Pallet 800 × 1200 cross path width |
Ast (mm) |
3070 |
| 4.35 |
Turning radius |
Wa (mm) |
1470 |
|
Performance parameter
|
|
|
|
| 5.1 |
Travel speed, full / no load |
km/ h |
8/8 |
| 5.2 |
Lifting speed, full/no load |
m/ s |
0.13/0.16 |
| 5.3 |
Descending speed ,full/no load |
m/ s |
0.16/0.18 |
| 5.8 |
Max climb, full/no load |
% |
0 |
| 5.10. |
Service brake type |
|
electromagnetism |
|
Motor, Power unit
|
|
|
|
| 6.1 |
Rated power of drive motor S2 60minutes |
kW |
2.5 |
| 6.2 |
Rated power of lifting motor S3 15% |
kW |
3 |
| 6.4 |
Battery voltage/nominal capacity |
V/ Ah |
24V/360Ah |
|
Drive/lift mechanism
|
|
|
|
| 8.1 |
Drive control type |
|
AC |
|
other parameters
|
|
|
|
| 10.5 |
Steering type |
|
Electronic |
| 10.7 |
Noise level |
dB (A) |
74 |
