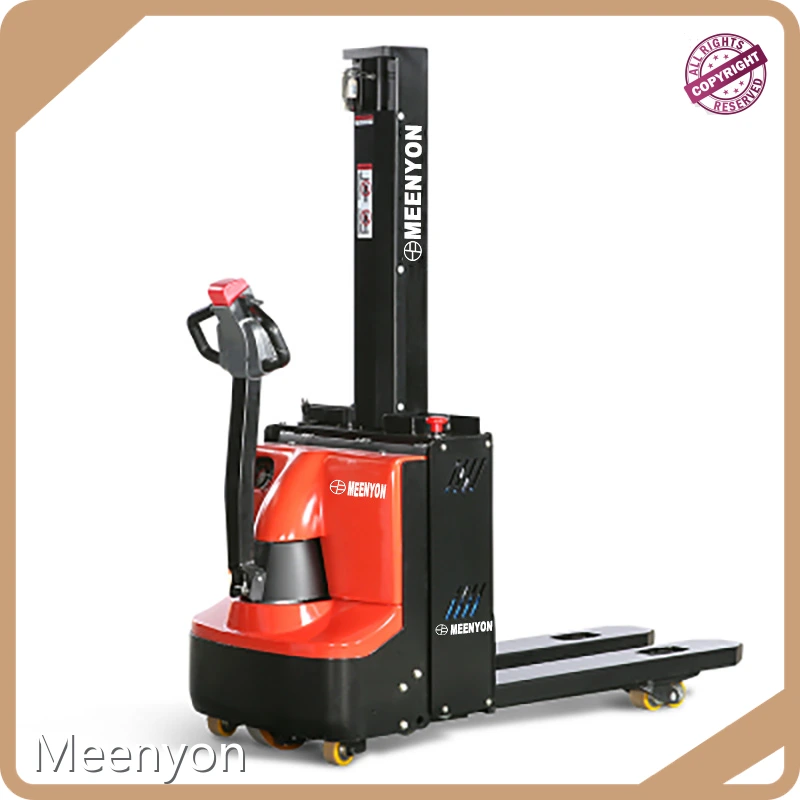

Product details of the walking stacker
Product Description
The production of Meenyon walking stacker complies with the requirements of ISO quality certification. The product has better durability due to its quality assurance. The product has been sold to the overseas market for and has been well received by customers.
Product specifications
Item | Name | Unit (Code) | |
Feature | |||
1.1 | Brand | MEENYON | |
1.2 | Model | ES08-WAI | |
1.3 | Power | Electric | |
1.4 | Operation | Walking | |
1.5 | Rated load | Q (kg) | 800(Fork load2000) |
1.6 | Load center distance | c (mm) | 600 |
Weight | |||
2.1 | Dead weight (incl. battery) | kg | 660 |
Size | |||
4.2 | Lowest height after the gantry is lowered | h1 (mm) | 1860 |
4.4.. | Gantry travel | h3 (mm) | 1480 |
4.4... | Gantry lifting height (fork face to ground) | h23 (mm) | 1685 |
4.15 | Fork drop height | h13(mm) | 95 |
4.19 | Overall length | l1 (mm) | 1776 |
4.21 | Overall width | b1/ b2 (mm) | 738 / 710 |
4.25 | Fork outside distance | b5 (mm) | 560 |
4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2274 |
4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2198 |
4.35 | Turning radius | Wa (mm) | 1442 |
Performance parameter | |||
5.1 | Travel speed, full / no load | km/ h | 5 / 5.5 |
5.2 | Max climb, full / no load | m/ s | 0.14/0.2 |
Motor, Power unit | |||
6.4 | Battery voltage/nominal capacity | V/ Ah | 4*6v/224Ah |
Company Feature
• Good geographic location, excellent traffic conditions, and telecommunications make contribution to Meenyon's sustainable development.
• Our company was incorporated in Through the unremitting exploration of years, we have successfully found a suitable path for development.
• Meenyon's product network covers all provinces and regions of the country. The products are also exported to Europe, America, Africa and Southeast Asia.
New and old customers as well as agents are welcome to partner with us or place orders. Meenyon looks forward to cooperating with all of you to explore new market!
