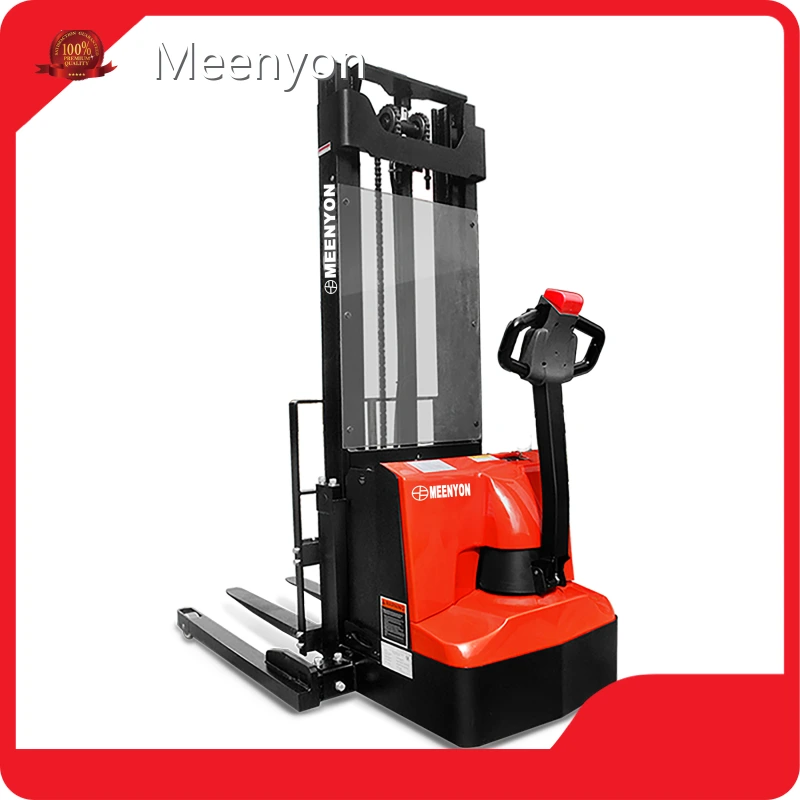

Wholesale Electric Forklift Supplier Factory Direct Supply
Product details of the electric forklift supplier
Product Overview
With the advanced equipment, Meenyon electric forklift supplier is manufactured in a high efficient manner. The product is unparalleled in terms of performance, life and availability. electric forklift supplier is one of the main products of Meenyon. With wide application, our product can be applied to different industries and fields. And it is deeply loved and favored by customers. Meenyon is committed into providing the best customer service.
Product Introduction
Choose Meenyon's electric forklift supplier for the following reasons.
Product specifications
| Item | Name | Unit (Code) | |
| Feature | |||
| 1.1 | Brand | MEENYON | |
| 1.2 | Model | ES12-25WA | |
| 1.3 | Power | Electric | |
| 1.4 | Operation | Walking | |
| 1.5 | Rated load | Q (kg) | 1200 |
| 1.6 | Load center distance | c (mm) | 600 |
| Weight | |||
| 2.1 | Dead weight (incl. battery) | kg | 1150 |
| Size | |||
| 4.2 | Lowest height after the gantry is lowered | h1 (mm) | 2110 |
| 4.4 | Standard max lifting height | h3 (mm) | 3220 |
| 4.15 | Fork drop height | h13(mm) | 60 |
| 4.19 | Overall length | l1 (mm) | 1947 |
| 4.21 | Overall width | b1/ b2 (mm) | 1120/1220/1320/1420 |
| 4.25 | Fork outside distance | b5 (mm) | 200-760 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2405 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2400 |
| 4.35 | Turning radius | Wa (mm) | 1490 |
| Performance parameter | |||
| 5.1 | Travel speed, full / no load | km/ h | 5.0/5.5 |
| 5.2 | Max climb, full / no load | m/ s | 0.127/0.23 |
| Motor, Power unit | |||
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 24V/210Ah |
Company Introduction
Meenyon is a company that is located in to produce and sell Meenyon has a mature service team to provide quality services for customers in the whole process of sales. We have many years of experience in production and sales. And if you are interested in our products, feel free to contact us.
