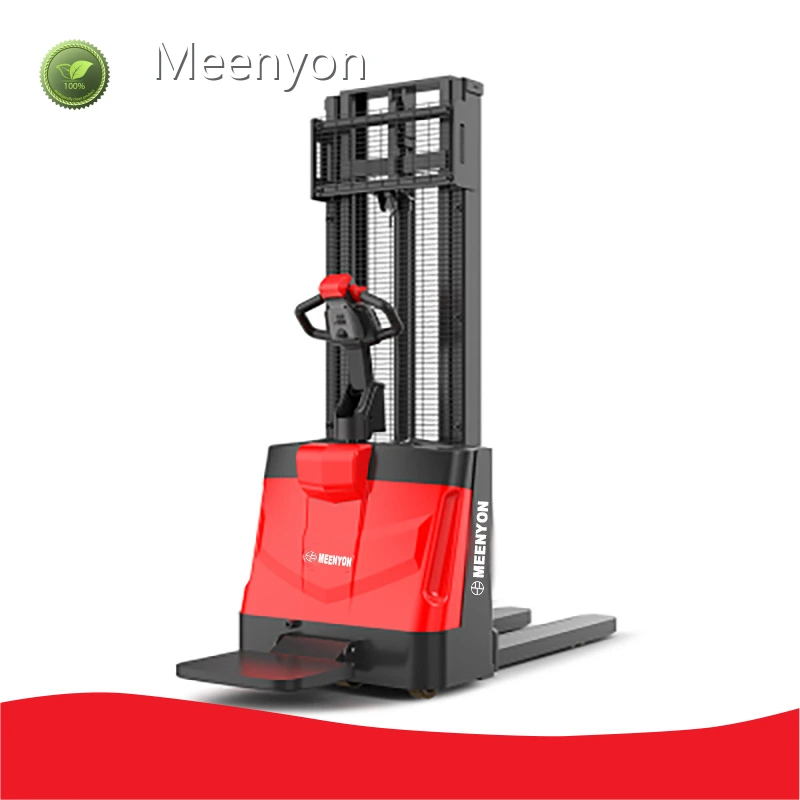

Product details of the industrial walkie stacker
Product Overview
Meenyon industrial walkie stacker is produced by modern assembly line. The strong ability from industrial walkie stacker make our products more appreciated by customers. Meenyon's industrial walkie stacker can be applied to different fields. The development of Meenyon benefits the people in the surrounding communities.
Product Description
Meenyon adheres to the principle of 'details determine success or failure' and pays great attention to the details of industrial walkie stacker.
Product specifications
| Item | Name | Unit (Code) | |
| Feature | |||
| 1.1 | Brand | MEENYON | |
| 1.2 | Model | ESR151 | |
| 1.3 | Power | Electric | |
| 1.4 | Operation | Walking | |
| 1.5 | Rated load | Q (kg) | 1500 |
| 1.6 | Load center distance | c (mm) | 500 |
| Weight | |||
| 2.1 | Dead weight (incl. battery) | kg | 670 |
| Size | |||
| 4.2 | Lowest height after the gantry is lowered | h1 (mm) | 2106 |
| 4.4 | Standard max lifting height | h3 (mm) | 3016 |
| 4.15 | Fork drop height | h13(mm) | 90 |
| 4.19 | Overall length | l1 (mm) | 1832 |
| 4.21 | Overall width | b1/ b2 (mm) | 850 |
| 4.25 | Fork outside distance | b5 (mm) | 570 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2328 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2262 |
| 4.35 | Turning radius | Wa (mm) | 1488 |
| Performance parameter | |||
| 5.1 | Travel speed, full / no load | km/ h | 4.0 / 4.5 |
| 5.2 | Max climb, full / no load | m/ s | 0.10/0.14 |
| Motor, Power unit | |||
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 24/105 |
Company Information
Meenyon is a comprehensive enterprise with diverse business range. We are engaged in the production, sales and trade and are key products. Our company has established a comprehensive service guarantee system. We are committed to providing customers with more comprehensive, swift and professional services, with the desire for win-win cooperation with customers. We always insist on the production of high-quality products. Welcome customers with needs to negotiate with us!
