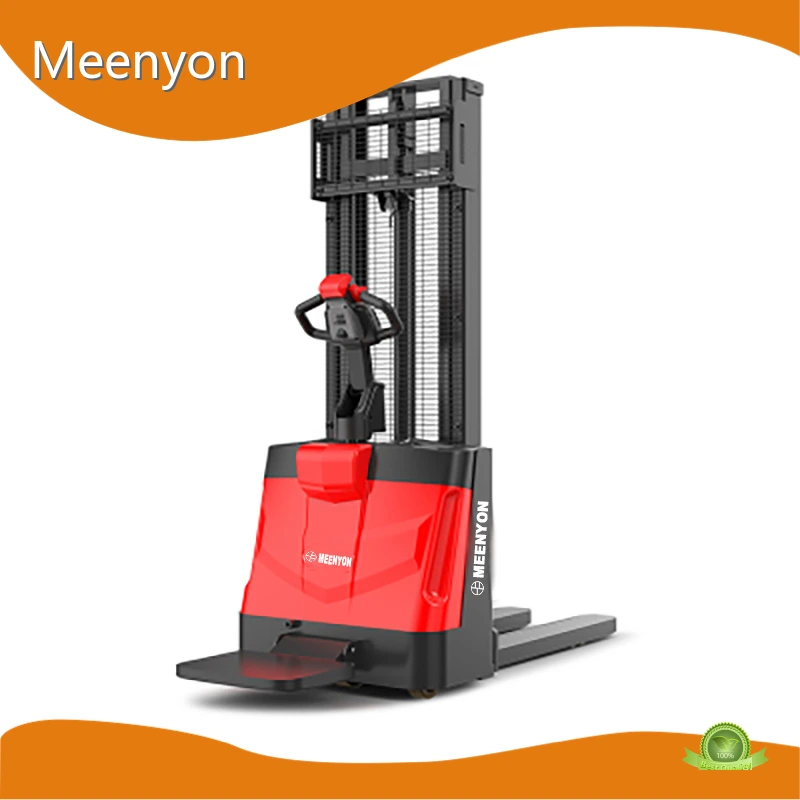

Product details of the oem forklift
Product Introduction
Crafted precisely at our modernized setup the offered oem forklift is made from premium grade material. Quality is what Meenyon product can do for customers. Meenyon can help you solve the problems with our accomplished technical resources and advanced equipment.
Product specifications
| Item | Name | Unit (Code) | |
| Feature | |||
| 1.1 | Brand | MEENYON | |
| 1.2 | Model | ESR151 | |
| 1.3 | Power | Electric | |
| 1.4 | Operation | Walking | |
| 1.5 | Rated load | Q (kg) | 1500 |
| 1.6 | Load center distance | c (mm) | 500 |
| Weight | |||
| 2.1 | Dead weight (incl. battery) | kg | 670 |
| Size | |||
| 4.2 | Lowest height after the gantry is lowered | h1 (mm) | 2106 |
| 4.4 | Standard max lifting height | h3 (mm) | 3016 |
| 4.15 | Fork drop height | h13(mm) | 90 |
| 4.19 | Overall length | l1 (mm) | 1832 |
| 4.21 | Overall width | b1/ b2 (mm) | 850 |
| 4.25 | Fork outside distance | b5 (mm) | 570 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2328 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2262 |
| 4.35 | Turning radius | Wa (mm) | 1488 |
| Performance parameter | |||
| 5.1 | Travel speed, full / no load | km/ h | 4.0 / 4.5 |
| 5.2 | Max climb, full / no load | m/ s | 0.10/0.14 |
| Motor, Power unit | |||
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 24/105 |
Company Feature
• Since the beginning in Meenyon has had a history of years and accumulated rich industry experience.
• Meenyon pays great attention to customers and services in the business. We are dedicated to providing professional and excellent services.
• Meenyon's products are widely recognized in the country. Besides, they are exported to Europe, America, Southeast Asia, the Middle East, and other regions.
For more information, please contact Meenyon. We look forward to your contact and cooperation.
