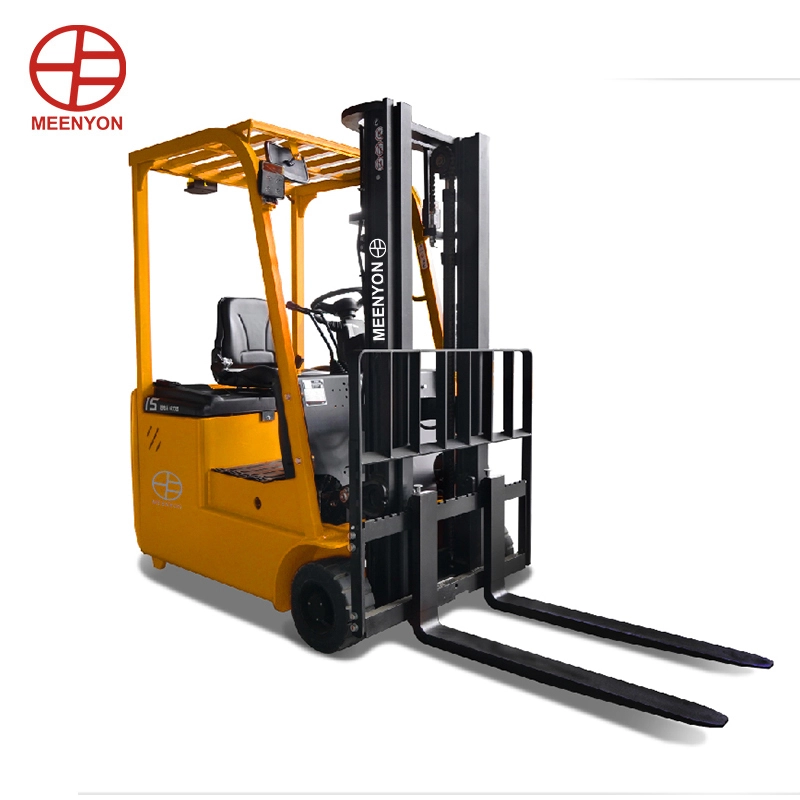

Meenyon 3 Wheel Electric Forklift EFS151 1.5t Three Wheel Electric Truck
Σημεία πώλησης προϊόντων
◆ Μικρότερο - μικρότερο μέγεθος, μικρότερη ακτίνα στροφής.
◆ Πιο εξειδικευμένο - ένα τρίτροχο ηλεκτρικό περονοφόρο ανυψωτικό, σχεδιασμένο ειδικά για λειτουργίες στενών καναλιών.
Introduction
SMALLER- SMALLER SIZE, SMALLER TURNING RADIUS
The three wheel electric forklift is an efficient material handling equipment that is commonly used in warehouses, distribution centers, and manufacturing facilities. Unlike traditional forklifts with four wheels, the three wheel design offers increased maneuverability and agility in tight spaces. The compact size of the three wheel electric forklift allows operators to navigate through narrow aisles with ease, making it ideal for locations with limited space constraints. Equipped with an electric motor, this type of 3 wheel counterbalance forklift produces zero emissions, providing a cleaner and quieter operation compared to diesel or propane-powered models. Additionally, the ergonomic design of the operator's cabin ensures comfort during long shifts, increasing productivity and reducing operator fatigue. The three wheel electric forklift is capable of handling various loads efficiently while maintaining stability and control. This modern piece of equipment embodies innovation and functionality in the material handling industry.
While meeting the load requirements, the vehicle is made lighter and smaller through exquisite weight calculation, meeting the needs of small space operations such as entering and exiting narrow passages and elevators.
◆ Smaller size. The vertical length of the delivery fork is 1797mm.
◆
The turning radius is smaller. Turning radius 1535mm, can rotate 360 degrees in place, with a rotation range of 180 degrees.
Stronger - better configuration, stronger quality
More professional - three point forklifts designed specifically for narrow channel operations
Lightweight and flexible, versatile in handling, meeting various customer needs.
COMPANY STRENGTH
| Item | Name | Unit (Code) | ||
Feature |
|
|
|
|
| 1.1 | Brand | MEENYON | MEENYON | |
| 1.2 | Malli | EFS151 (Lead-acid battery) | EFS151L (Lithium battery) | |
| 1.3 | Tehoa | Sähköinen | Sähköinen | |
| 1.4 | Operation | Car type | Car type | |
| 1.5 | Rated load | Q (kg) | 1500 | 1500 |
| 1.6 | Load center distance | c (mm) | 500 | 500 |
Paino |
|
|
|
|
| 2.1 | Dead weight (incl. battery) | kg | 2200 | 2200 |
Tires, chassis |
|
|
|
|
| 3.1 | Tire type, drive wheel/carrier wheel (steering wheel) | Solid tire | Solid tire | |
Size |
|
|
|
|
| 4.4 | Max lifting height of standard frame | h3 (mm) | 3000 | 3000 |
| 4.7 | Top guard (cab) height | h6 (mm) | 1995 | 1995 |
| 4.20. | Length to vertical face of fork | l2 (mm) | 1797 | 1797 |
| 4.21 | Overall width | b1/ b2 (mm) | 1060 | 1060 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 3000 | 3000 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 3200 | 3200 |
| 4.35 | Turning radius | Wa (mm) | 1535 | 1535 |
Performance parameter |
|
|
|
|
| 5.1 | Travel speed, full / no load | km/ h | 8 / 9 | 8 / 9 |
| 5.8 | Max climb, full / no load | % | 10 / 12 | 10 / 12 |
Motor, Power unit |
|
|
|
|
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 48/180 (lead-acid battery) | 48/150 (lithium battery) |
