Bulk Powered Pallet Stacker Company
Product details of the powered pallet stacker
Quick Overview

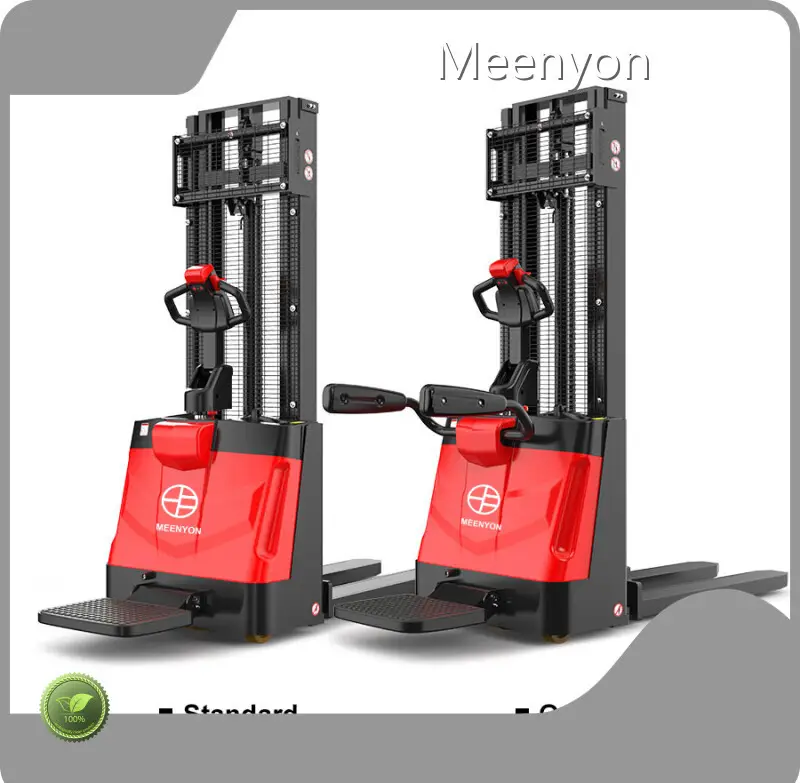

Meenyon powered pallet stacker is well-controlled in every detail. It is built to exceed manufacturing excellence standards. Meenyon can always meet customers' particular requirements by reasonable price and quickly delivery.
Product Description
Compared with other similar products, our powered pallet stacker has the following advantages.
Product selling points
Key points
Application
COMPANY STRENGTH
|
Item |
Name |
Unit (Code) |
|
| Feature | |||
| 1.1 | Brand | MEENYON | |
| 1.2 | Model | ESR151 | |
| 1.3 | Power | Electric | |
| 1.4 | Operation | Standing | |
| 1.5 | Rated load | Q (kg) | 1500 |
| 1.6 | Load center distance | c (mm) | 500 |
| Weight | |||
| 2.1 | Dead weight (incl. battery) | kg | 670 |
| Size | |||
| 4.2 | Lowest height after the gantry is lowered | h1 (mm) | 2106 |
| 4.4 | Gantry travel | h3 (mm) | 3016 |
| 4.4... | Gantry lifting height (fork face to ground) | h23(mm) | 2930 |
| 4.15 | Fork drop height | h13(mm) | 90 |
| 4.19 | Overall length | l1 (mm) | 1832 |
| 4.21 | Overall width | b1/ b2 (mm) | 850 |
| 4.25 | Fork outside distance | b5 (mm) | 570 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2328 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2262 |
| 4.35 | Turning radius | Wa (mm) | 1488 |
| Performance parameter | |||
| 5.1 | Walk speed, full/no load | km/ h | 4.0/4.5 |
| 5.2 | Lifting speed, full/no load | m/ s | 0.10/0.14 |
| Motor, Power unit | |||
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 24/105 |
Company Introduction
Meenyon is a modern company in We are engaged in the independent R&D, production and transportation of After years of laborious development, Meenyon has a comprehensive service system. We have the ability to provide products and services for numerous consumers in time. We have been providing high quality powered pallet stacker for a long time. We look forward to working with you.
