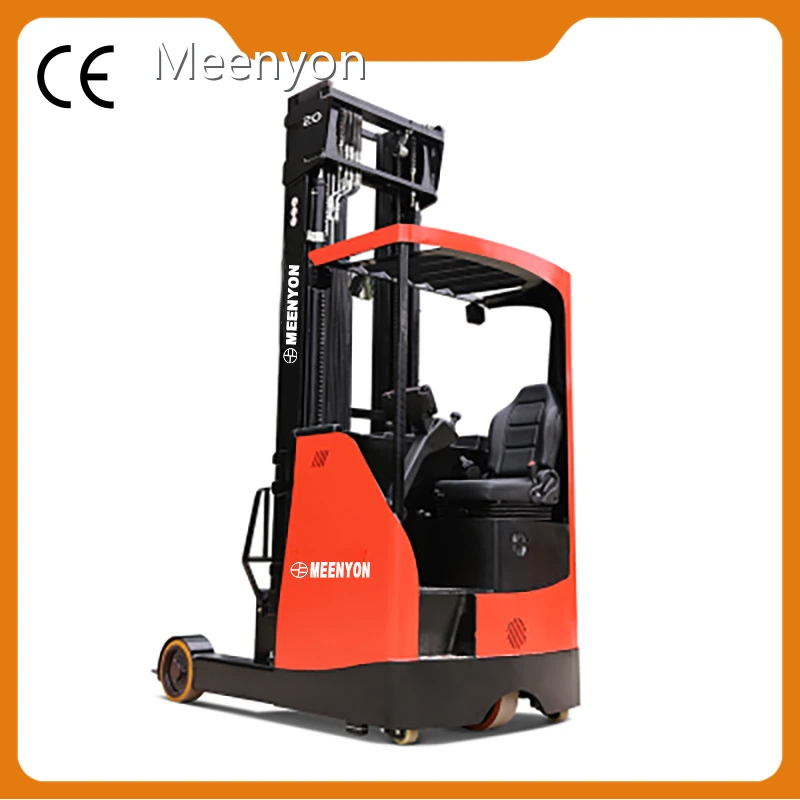

Electric Reach Truck - - Meenyon 1
Electric Reach Truck - - Meenyon 2
Electric Reach Truck - - Meenyon 3
Electric Reach Truck - - Meenyon 1
Electric Reach Truck - - Meenyon 2
Electric Reach Truck - - Meenyon 3

Electric Reach Truck - - Meenyon

Inquiry

Product details of the electric reach truck


Product Introduction

Meenyon electric reach truck is made in strict accordance with the industry standard. The multiple varies of electric reach truck design provides more convenience for the choices of customers. Meenyon has experienced management and technical team.

Product selling points

Electric Reach Truck - - Meenyon 4
Wide field of vision and comfortable operation
Electric Reach Truck - - Meenyon 5
Stable and reliable, high performance and high efficiency
31
Easy maintenance

Wide field of vision

◆ Optimized appearance structure, reduced field of vision obstruction, more flexible operation

◆ Instrument steering integrated design, increased operating space, vehicle instrument information is clear at a glance.

654345
7646343_conew1

Comfortable operation

◆ The control panel fully considers ergonomics, making operation more comfortable.

◆ Based on ergonomics, the cockpit is integrated to greatly improve the operating comfort.



Stable and reliable

 The center of gravity of the vehicle is lowered to improve the high-position load-bearing capacity.

 The gantry is optimized to increase the high-position load-bearing capacity and is suitable for more working conditions.

 The solenoid valve is equipped with a height display (three-level gantry) as standard, and the height positioning makes high-position pickup more accurate.


645634
3-xj7
3-xj7

◆ The width of the vehicle is 1270mm, and the maximum stacking height can reach 12 meters.

◆ It is equipped with 500Ah battery and 65A charger as standard.

◆ It is equipped with built-in side shift as standard, which makes picking up goods more flexible.

COMPANY STRENGTH

Item Name Unit (Code)
Feature
1.1 Brand   MEENYON MEENYON
1.2 Model   CQD20RV(F)2 CQD16RV(F)2
1.3 Power   Electric Electric
1.4 Operation   Car type Car type
1.5 Rated load Q (kg) 2000 1600
1.6 Load center distance c (mm) 600 600
Weight
2.1 Dead weight (incl. battery) kg 3750② 3741②
Size
4.2 The lowest height after the gantry is lowered h1 (mm) 3219③ 3219③
4.4 Standard max lifting height h3 (mm) 7500③ 7500③
4.5 The height of the gantry at its highest lift h4 (mm) 8565③ 8565③
4.7 Top guard (cab) height h6 (mm) 2213 2213
4.19 Overall length l1 (mm) 2515① 2515①
4.21 Overall width b1/ b2 (mm) 1260/1270① 1260/1270①
4.22 Fork size s/ e/ l (mm) 40/120/1070 40/100/1070
4.24 Stop shelf outside width b3 (mm) 990 990
4.25 Fork outside distance b5 (mm) 240/770 240/770
4.26 Distance between wheel arms b4 (mm) 915 915
4.34.1 Pallet 1000 × 1200 cross path width Ast (mm) 2889① 2873①
4.34.2 Pallet 800 × 1200 cross path width Ast (mm) 2952① 2951①
4.35 Turning radius Wa (mm) 1770① 1700①
4.37 Vehicle length (without fork) l7(mm) 1948① 1878①
Performance parameter
5.1 Travel speed, full / no load km/ h 9/9.5 10/11
5.2 Lifting speed, full/no load m/ s 0.35/0.45 0.35/0.5
5.3 Descending speed ,full/no load m/ s 0.41/0.38 0.41/0.38
5.8 Max climb, full / no load % 10/15 10/15
Motor, Power unit
6.4 Battery voltage/nominal capacity V/ Ah 48/500④ 48/500④
