Company Advantages
· Meenyon material handling forklift is designed for ease-of-use to improve convenience.
· It is created according to strict performance standards. It is tested against other comparable products on the market and goes through real-world stimulation before going to the market.
· This product far exceeds other products in terms of performance/price ratio.
Product specifications
Item | Name | Unit (Code) | ||
Feature | ||||
1.1 | Brand | MEENYON | MEENYON | |
1.2 | Model | ES10-10MM | ES12-12MM | |
1.3 | Power | Electric | Electric | |
1.4 | Operation | Walking | Walking | |
1.5 | Rated load | Q (kg) | 1000 | 1200 |
1.6 | Load center distance | c (mm) | 600 | 600 |
Weight | ||||
2.1 | Dead weight (incl. battery) | kg | 462 | 462 |
Size | ||||
4.2 | Lowest height after the gantry is lowered | h1 (mm) | 1940 | 1940 |
4.4 | Standard max lifting height | h3 (mm) | 1517 | 1517 |
4.15 | Fork drop height | h13(mm) | 88 | 88 |
4.19 | Overall length | l1 (mm) | 1615 | 1615 |
4.21 | Overall width | b1/ b2 (mm) | 800 | 800 |
4.25 | Fork outside distance | b5 (mm) | 550 | 550 |
4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2137 | 2137 |
4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2062 | 2062 |
4.35 | Turning radius | Wa (mm) | 1295 | 1295 |
Performance parameter | ||||
5.1 | Walk speed, full /no load | km/ h | 4 / 4.5 | 4 / 4.5 |
5.2 | Lifting speed, full /no load | m/ s | 0.12/0.22 | 0.12/0.22 |
Motor, Power unit | ||||
6.4 | Battery voltage/nominal capacity | V/ Ah | 2*12V/85Ah | 2*12V/85Ah |
Company Features
· Meenyon is a trustworthy company based in China. We have achieved immense success in designing and manufacturing material handling forklift.
· We have entered into business relationships with clients worldwide. Due to our attitude and services, as well as quality products, we earned high satisfaction among our customers all over the world.
· We always welcome any new ideas and suggestions to improve the quality and service that we believe in! Inquire!

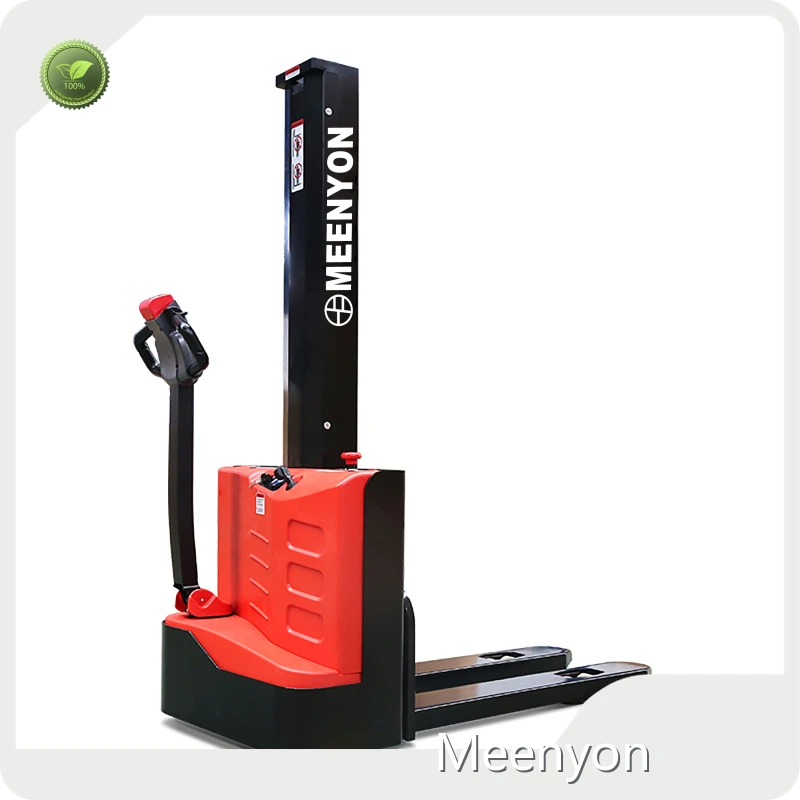

Product Details
The details of material handling forklift are shown for you at below.
