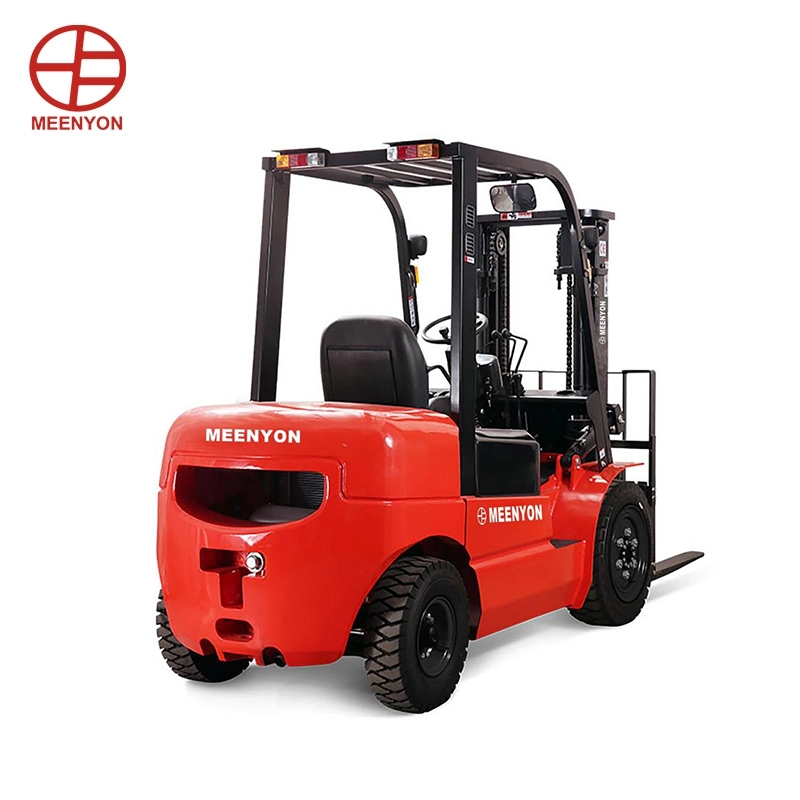

Diesel Forklift Truck CPC/Q(D)20-35T3 2.0-3.5T Internal Combustion Forklift
Product selling points
◆ Wide view gantry, small diameter steering wheel;
◆ Adjustable seats;
◆ Safety and environmental protection;
◆ Xinchang diesel engine.
FOUR MAJOR ADVANTAGES
Safety and environmental protection
◆ The whole vehicle is safer, more environmentally friendly, more efficient, and more convenient to maintain.
Configuration upgrade
◆ Wide view gantry (new, sturdy, and reliable wide view gantry with cargo lowering and buffering function).
◆ Other upgrade designs.
◆ Small diameter steering wheel.
The small diameter steering wheel with adjustable angle and soft touch provides lightweight and comfortable handling.
◆ Solid state pointer instrument.
Built in intelligent chip, sensitive, accurate, reliable, low function, long service life, suitable for temperature range (-40 ℃ -80 ℃), strong anti-interference ability.
◆ Insulating and sound-absorbing materials.
The hood is equipped with insulation and sound absorption materials, and the rubber parts at the gap between the hood and the body are filled and sealed to block and absorb vibration and reduce noise.
Comfortable operation
Set key, electric meter, control signal light and operation button as one, the operation is more simple and convenient
◆ Comfortable operation, reducing user fatigue
◆ Advanced human-machine engineering technology and vehicle shock absorption technology, as well as flexible synchronous mechanical transmission control (or infinitely variable electro-hydraulic control), make vehicle operation more comfortable and greatly reduce user fatigue
◆ Vehicle shock absorption technology.
◆ Make the entire vehicle operation more comfortable and greatly reduce user fatigue
◆ Powerful overall chassis structure, greatly extending the service life of forklifts.
COMPANY STRENGTH
| Item | Name | Unit (Code) | ||||
| Feature | ||||||
| 1.1 | Brand | MEENYON | MEENYON | MEENYON | MEENYON | |
| 1.2 | Model | CPC(D)20T3(C240) | CPC(D)20T3(S4S) | CPC(D)20T3 | CPQD20T3 | |
| 1.3 | Power | diesel | diesel | diesel | gasoline | |
| 1.5 | Rated load | Q (kg) | 2000 | 2000 | 2000 | 2000 |
| 1.6 | Load center distance | c (mm) | 500 | 500 | 500 | 500 |
| Weight | ||||||
| 2.1 | Dead weight (incl. battery) | kg | 3380 | 3380 | 3380 | 3380 |
| Size | ||||||
| 4.4 | Max lifting height of standard frame | h3 (mm) | 3000 | 3000 | 3000 | 3000 |
| 4.7 | Top guard (cab) height | h6 (mm) | 2160 | 2160 | 2160 | 2160 |
| 4.21 | Overall width | b1/ b2 (mm) | 1150 | 1150 | 1150 | 1150 |
| 4.35 | Turning radius | Wa (mm) | 2170 | 2170 | 2170 | 2170 |
| Performance parameter | ||||||
| 5.1 | Travel speed, full / no load | km/ h | (no load)20 | (no load)20 | (no load)20 | (no load)20 |
| 5.8 | Max climb, full / no load | % | 20 | 20 | 20 | 20 |
| Motor, Power unit | ||||||
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 12/60 | 12/60 | 12/80 | 12/60 |
