Hot Sale Electric Pallet Truck Stacker Price List

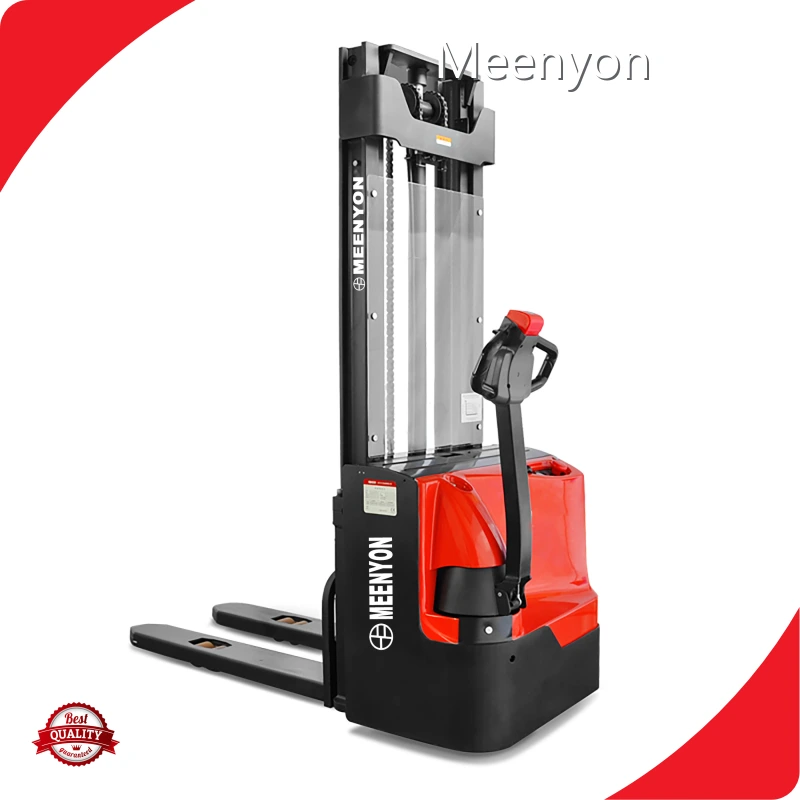

Product details of the electric pallet truck stacker
Product Introduction
Meenyon electric pallet truck stacker is a well-crafted product that adopts advanced technologies and is processed by specialized and highly efficient production lines. It is produced directly from the well-equipped facility. This product offers exceptional performance and a long service life. The product is well recognized and known in the industry and tends to be used more widely in the global market.
Product specifications
| Item | Name | Unit (Code) | |||
| Feature | |||||
| 1.1 | Brand | MEENYON | MEENYON | MEENYON | |
| 1.2 | Model | ES14-14WA | ES16-16WA | ES12-12WA | |
| 1.3 | Power | Electric | Electric | Electric | |
| 1.4 | Operation | Walking | Walking | Walking | |
| 1.5 | Rated load | Q (kg) | 1400 | 1600 | 1200 |
| 1.6 | Load center distance | c (mm) | 600 | 600 | 600 |
| Weight | |||||
| 2.1 | Dead weight (incl. battery) | kg | 1050 | 1070 | 950 |
| Size | |||||
| 4.2 | Lowest height after the gantry is lowered | h1 (mm) | 2030 | 2030 | 1970 |
| 4.4 | Standard max lifting height | h3 (mm) | 2912 | 2912 | 2912 |
| 4.15 | Fork drop height | h13(mm) | 88 | 88 | 88 |
| 4.19 | Overall length | l1 (mm) | 1940 | 1940 | 1940 |
| 4.21 | Overall width | b1/ b2 (mm) | 800 | 800 | 800 |
| 4.25 | Fork outside distance | b5 (mm) | 550/685 | 550/685 | 550/685 |
| 4.34.1 | Pallet 1000 × 1200 cross path width | Ast (mm) | 2465 | 2465 | 2465 |
| 4.34.2 | Pallet 800 × 1200 cross path width | Ast (mm) | 2440 | 2440 | 2440 |
| 4.35 | Turning radius | Wa (mm) | 1589 | 1589 | 1589 |
| Performance parameter | |||||
| 5.1 | Travel speed, full / no load | km/ h | 5.0/5.5 | 5.0/5.5 | 5.0/5.5 |
| 5.2 | Max climb, full / no load | m/ s | 0.13/0.16 | 0.13/0.16 | 0.13/0.16 |
| Motor, Power unit | |||||
| 6.4 | Battery voltage/nominal capacity | V/ Ah | 24V/210Ah | 24V/230Ah | |
Company Feature
• Meenyon's location enjoys traffic convenience and has complete infrastructures around. All these provide good conditions for our company's rapid development.
• The sales channels of our products cover the whole China, Southeast Asia, Europe and the United States.
• Our company has set up a high-quality, experienced and knowledgeable customer service team, which is committed to supplying all-round services to consumers.
If you have any questions, you may leave your contact information. Meenyon will get back to you as soon as possible.
